Schneider Electric LADT46 TeSys Deca Time Delay Auxiliary Contact Block, 1NO + 1NC, Delay 10-180s
Schneider Electric LADT46 TeSys Deca Time Delay Auxiliary Contact Block, 1NO + 1NC, Delay 10-180s
- MPN: LADT46
- PPN: SCH-LADT46
- UNSPSC: 39121010
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$229.60/ EA
Description

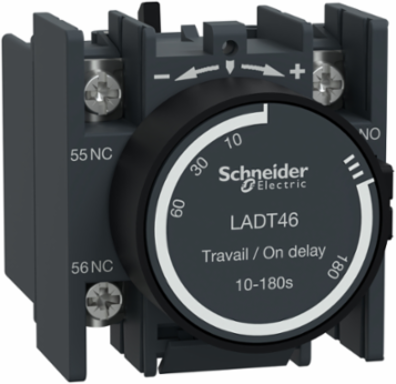

TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 10-180s, connection by lugs-ring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- New modern look & feel of all machines
- Designed to meet the requirements of industrial and HVAC applications
- Easier to install and operate with multi-standard screws
- With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
Specifications
Physical Attributes
- Color
- dark grey
Conformance Attributes
- Product Certifications
- CB, UL, CSA, CCC, UKCA
StandardsEN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ
Complementary Attributes
- IRMS Rated Making Capacity
- 140 A AC, 250 A DC
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Insulation Resistance
- > 10 MOhm, > 10 MOhm
- Range
- TeSys, TeSys Deca
- Ie Rated Operational Current2
- 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
- Carbon Footprint Of The Distribution Phase A4
- 0.01994433894775979, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.01152272562406154, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 3 kg CO2 eq., 3.1606
- Ie Rated Operational Current5
- 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Environmental Characteristic
- normal environment
- Mounting Location
- front
- Pole Contact Composition
- 1 NO + 1 NC
- Product Or Component Type
- time delay auxiliary contact block
- Protective Treatment
- TH IEC 60068
- Returnability
- No
- Time Delay Range
- 10...180 s
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ue Rated Operational Voltage2
- 690 V AC 25...400 Hz
- Medium Desc
- Time delay auxiliary contact block, TeSys Deca, 1NO + 1NC, on delay 10-180s, front, lugs-ring terminals
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Time delay module during 20 years on TeSys Deca contactors (front mounting), the ON time delays adjustable from 1 to 30s and the OFF time delays adjustable from 1 to 30s.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; FR
- Shielding Continuity Terminal
- without
- Global Commercial Status
- Commercialised
- Connections Terminals3
- lugs-ring terminals 8 mm)
- Ue Rated Operational Voltage5
- 690 V AC 25...400 Hz
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Non Overlap Time1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Tightening Torque1.7 N.m flat Ø 6 mm, 1.7 N.m Philips No 2, 1.7 N.m pozidriv No 2
Ui Rated Insulation Voltage2690 V IEC 60947-5-1, 600 V UL, 600 V CSA
Carbon Footprint Of The End Of Life Phase C1 To C40.2 kg CO2 eq., 0.17376341204753004
Carbon Footprint Of The Manufacturing Phase A1 To A30.5 kg CO2 eq., 0.49343699637388094
Permissible Short Time Rating100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms
Ui Rated Insulation Voltage5690 V IEC 60947-5-1, 600 V UL, 600 V CSA
Local Publishable Date2025-07-09
TraceabilityNo
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
Without Single Use PlasticYes
Return IndicatorN
Function OptionStandard
Mechanical Durability5 Mcycles
Package Weight Lbs72.000 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection TypegG fuse 10 A
Range Of ProductTeSys Deca
Sustainable PackagingYes
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Ith Conventional Free Air Thermal Current210 A (at 60 °C)
Connections Terminalslugs-ring terminals 8 mm)
Stocking FlagY
Pep CodeENVPEP1107002EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; FR
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; FR
Timer Typeon delay
Product NameTeSys Deca
Ith Conventional Free Air Thermal Current510 A (at 60 °C)
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 3.8592674729932326
- Ambient Air Temperature For Storage
- -60-80 °C
- IP Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Environmental DisclosureENVPEP1107002EN
Operating Altitude9842.52 ft (3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1107002EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- time delay auxiliary contact block
Range Of ProductTeSys Deca
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 61 mm
Downloads
