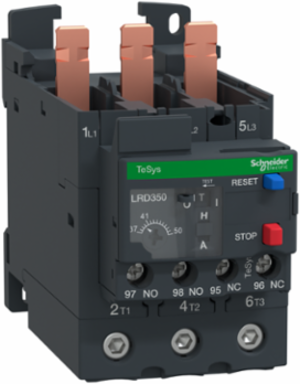

Schneider Electric LRD350 TeSys Deca Thermal Overload Relay 37-50A 690VAC Class 10A
- MPN: LRD350
- PPN: SCH-LRD350
CAD
$255.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 40 amp through 65 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 37 to 50 amperes. This trip current rating is calibrated per Class 10A. This overload relay uses EVERLINK termnals in place of the standard terminals.
Features
- Specifically engineered for seamless plug-and-play mounting beneath TeSys Deca and TeSys D contactors (models LC1D40A through LC1D65A), this thermal overload relay creates a compact, high-integrity motor starter assembly. By utilizing a direct-connect design, you eliminate additional wiring labor and reduce the overall footprint within your industrial control panel.
- Featuring a precision-calibrated adjustment dial, this relay allows you to fine-tune the protection threshold between 37 and 50 Amps to match your motor's full load amperage (FLA). This granular control prevents premature motor burnout due to subtle overloads while simultaneously reducing nuisance tripping, ensuring your 3-phase pumps, fans, or conveyors operate at peak efficiency.
- Built with advanced differential tripping technology, this relay monitors for phase unbalance or the total loss of a single phase a common cause of rapid motor overheating and catastrophic failure. This proactive sensing mechanism instantly disconnects the motor during a phase fault, saving you thousands of dollars in rewinding costs and preventing unplanned production downtime.
- Equipped with a versatile blue reset button and a dedicated red stop/test button, this unit allows maintenance teams to choose between manual reset for critical fault investigation or automatic reset for remote applications. The visible trip indicator and built-in NO+NC auxiliary contacts provide immediate feedback to your PLC or alarm system, allowing for rapid diagnostics and a safer return to operation after an overcurrent event.
- Fully compliant with international standards including UL 508, CSA C22.2, and IEC 60947-4-1, this TeSys LRD relay is suitable for use in demanding global markets. Whether you are building panels for a domestic manufacturing plant or exporting machinery overseas, this certified protection ensures your equipment meets all mandatory safety regulations and electrical codes for motor branch circuit protection.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United States
Depth123 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mounting Support
- plate, with specific accessories, rail, with specific accessories, under contactor
- Permissible Current
- 0.95 A 380 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit
- Range
- TeSys, TeSys Deca
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals, power circuit 5 N.m EverLink BTR screw connectors
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.532707701, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.060948491, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 kg CO2 eq., 1.896335784
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- Red push-button stopBlue push-button reset
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Network Frequency
- 0...400 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Relay Application
- motor protection
- Software Version
- v6.1
- Thermal Overload Class
- class 10A IEC 60947-4-1
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP0804005EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential In %
- 27
- Width Nominal
- 55 mm
- [Ue] Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mechanical Robustnessshocks15 Gn for 11 ms IEC 60068-2-7, vibrations4 gn IEC 60068-2-6
Network TypeDC, AC
Product NameTeSys LRD, TeSys Deca
Temperature Compensation-20-60 °C, -20-60 °C
Certificate AgencyIEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
Connections - Terminalspower circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable endpower circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.871212274
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.45216814
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI0804005
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLRD
Device Short NameLRD
Flame RetardanceV1 conforming to UL 94
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Typedifferential thermal overload relay
ReturnabilityYes
Sustainable PackagingYes
Thermal Protection Adjustment Range37-50 A
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range37-50 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe functional unit of the LRD365 is to detect overload currents in order to protect the load for 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh28.3824
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal70 mm
[Ith] Conventional Free Air Thermal Current5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV
Package Weight(Lbs)394.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI0804005
- Environmental Disclosure
- ENVPEP0804005EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D65A, LC1D50A, LC1D40A
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint3.81337239
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0804005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
