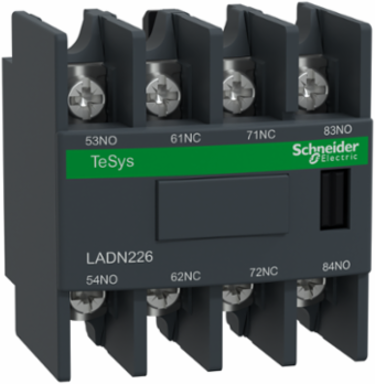

Schneider Electric LADN226 TeSys Deca Auxiliary Contact Block 2NO+2NC, 10A, IP20
- MPN: LADN226
- PPN: SCH-LADN226
CAD
$113.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by ring lugs screw terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Depth42 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- Certificate Agency
- CB Scheme, UL, CSA, CCC, EAC, UKCA
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
- Permissible Short-time Rating
- 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.15462428493948835
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.41771858290220826
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Use Carbon Footprint
- 3.1606
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- LADN
- Insulation Resistance
- > 10 MOhm> 10 MOhm
- Mounting Location
- front
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- auxiliary contact block
- Protective Treatment
- TH IEC 60068
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Pole Contact Comp
- 2 NO + 2 NC
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To add instantaneous auxiliary contact blocks in front face on TeSys k contactors as NO and NC contacts for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential, In %
- 39
- Width Nominal
- 44 mm
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 3.1524
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 606.91
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 81.925
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 56.111
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 56.111
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Tightening Torque1.7 N.m 3.5-3.5 mm² flat Ø 6 mm M3.5, 1.7 N.m Philips No 2 M3.5, 1.7 N.m pozidriv No 2 M3.5
[Ie] Rated Operational Current6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
Non-overlap Time1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Carbon Footprint Of The Distribution Phase [A4]0.06786586045038151, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.008480726561347006, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]3 kg CO2 eq., 3.1606
Local Publishable Date2025-08-13
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Environmental Characteristicnormal environment
Mechanical Durability30 Mcycles
Pole Contact Composition2 NO + 2 NC
Product NameTeSys Deca
Protection TypegG fuse 10 A
Range Of ProductTeSys Deca
Shielding Continuity Terminalwithout
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1108007EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal48 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
Connections - Terminalslugs-ring terminals 8 mm)
Package Weight(Lbs)58.000 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]3.1606
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]22.321
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]663.02
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]606.91
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3.8092894548534253
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1108007EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1108007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- auxiliary contact block
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
