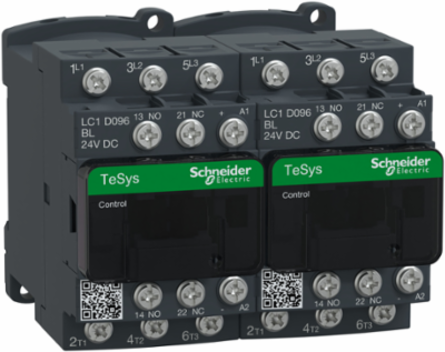

Schneider Electric LC2D096BL Reversing Contactor 3P 9A AC-3 24V DC Coil 90mm Width

MPN: LC2D096BL
PPN: SCH-LC2D096BL
UNSPSC: 39121529

$621.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Features

New modern look & feel of all machines
Designed to meet the requirements of industrial and HVAC applications
Easier to install and operate with multi-standard screws
With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Indonesia
Depth	95 mm

Weight	1107 g

Complementary Attributes

Control Circuit Type	DC low consumption, DC low consumption
Maximum Horse Power Rating	2 hp at 230/240 V AC 60 Hz for 3 phase motors0.5 hp at 115 V AC 60 Hz for 1 phase motors1 hp at 230/240 V AC 60 Hz for 1 phase motors, 2 hp at 200/208 V AC 60 Hz for 3 phase motors5 hp at 460/480 V AC 60 Hz for 3 phase motors7.5 hp at 575/600 V AC 60 Hz for 3 phase motors
Control Circuit Voltage Limits	0.1...0.3 Uc (-40-70 °C):drop-out DC0.8...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
Maximum Operating Rate	3600 cyc/h 60 °C
Minimum Switching Voltage	17 V for signalling circuit
Icw Rated Short Time Withstand Current	30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
Uc Control Circuit Voltage	24 V24 V DC
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947

Irms Rated Making Capacity	250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1
Ui Rated Insulation Voltage	signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
Maximum Motor Phase Current	9 A
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	250 A at 440 V for power circuit conforming to IEC 60947
Ie Rated Operational Current	9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Ue Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	25 A gG at <= 690 V coordination type 1 for power circuit20 A gG at <= 690 V coordination type 2 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Electrical Durability	0.6 Mcycles 25 A AC-1 <= 440 V, 2 Mcycles 9 A AC-3 <= 440 V, 2 Mcycles 9 A AC-3e <= 440 V
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
Mounting Support	plate, rail
Range	TeSys, TeSys Deca
Utilisation Category	AC-1, AC-3, AC-3e
Control Circuit Voltage	24 V
Non Overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End Of Life Phase C1 To C4	2.71593664622121, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	6 kg CO2 eq., 5.608073165386766
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1102030EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1929
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	built-in bidirectional peak limiting diode suppressor
Contact Compatibility	M5
Fire Resistance	850 °C IEC 60695-2-1
Inrush Power In W	2.4-2.4 W 20 °C)
Mechanical Durability	30 Mcycles
Operating Time	65.45...88.55 ms closing20...30 ms opening
Pole Contact Composition	3 NO
Product Name	TeSys Deca
Protective Treatment	TH IEC 60068-2-30
Returnability	No
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	39 kg CO2 eq.
Inf Motor Phase Current	9 A
Data Source	extrapolated product
Width Nominal	90 mm
Customs Code	8536490065
Hold In Power Consumption In W	2.4-2.4 W 20 °C
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	75

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Contactor Application	resistive load, motor control
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw	2.2 kW at 220...230 V AC 50-60 Hz4 kW at 380...400 V AC 50-60 Hz, 4 kW at 415 V AC 50-60 Hz, 4 kW at 440 V AC 50-60 Hz5.5 kW at 500 V AC 50-60 Hz, 5.5 kW at 660...690 V AC 50-60 Hz
Power Dissipation Per Pole	0.2 W AC-31.56 W AC-1, 0.2 W AC-3e
Tightening Torque	power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5, control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5power circuit 1.7 N.m lugs-ring terminals flat Ø 8 mm M3.5control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Connections Terminals	control circuit lugs-ring terminals 8 mm), power circuit lugs-ring terminals 8 mm)
Certificate Agency	DNV, CSA, CCC, UL, GL, LROS (Lloyds register of shipping), BV, RINA, GOST, UKCA
Carbon Footprint Of The Distribution Phase A4	0.3099478695234948, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.08582982648121525
Carbon Footprint Of The Use Phase B2 B3 B4 B6	30 kg CO2 eq., 29.850162162162164
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Impedance	2.5 mOhm - Ith 25 A 50 Hz for power circuit
Compatibility Code	LC2D
Device Short Name	LC2D
Flame Retardance	V1 conforming to UL 94
Interlocking Type	mechanical
Number Of Poles	3P
Overvoltage Category	III
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	reversing contactor
Range Of Product	TeSys Deca
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v5.9.4
Time Constant	40 ms
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Height Nominal	77 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit25 A (at 60 °C) for power circuit
Rated Thermal Current Ith	25 A
Functional Unit Description	Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	446.76

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Climatic Withstand	IACS E10, IEC 60947-1 Annex Q category D
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	38.56994966977485
Circularity Profile	ENVEOLI1102030EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP110230EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-60-80 °C, -60-80 °C
Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-60 °C-40-60 °C60-70 °C with derating
Environmental Disclosure	ENVPEP110230EN
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29
