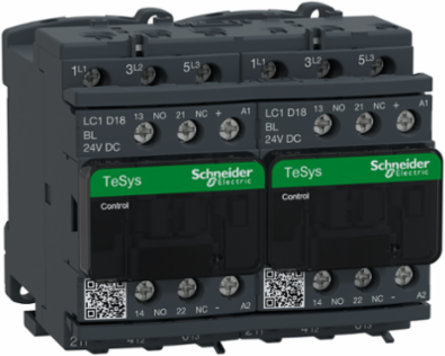

Schneider Electric LC2D18BL TeSys Deca Reversing Contactor 3P 18A 24V DC Low Consumption 90mm
- MPN: LC2D18BL
- PPN: SCH-LC2D18BL
CAD
$691.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3 (7.5kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth95 mm
Complementary Attributes
- Control Circuit Type
- DC low consumption, DC low consumption
- Control Circuit Voltage Limits
- 0.1...0.3 Uc (-40-70 °C):drop-out DC0.8...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
- Maximum Motor Phase Current
- 18 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 300 A at 440 V for power circuit conforming to IEC 60947
Maximum Horse Power Rating5 hp at 230/240 V AC 60 Hz for 3 phase motors1 hp at 115 V AC 60 Hz for 1 phase motors3 hp at 230/240 V AC 60 Hz for 1 phase motors, 5 hp at 200/208 V AC 60 Hz for 3 phase motors10 hp at 460/480 V AC 60 Hz for 3 phase motors15 hp at 575/600 V AC 60 Hz for 3 phase motors
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1300 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- resistive load, motor control
- Insulation Resistance
- > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
- Motor Power Kw
- 4 kW at 220...230 V AC 50-60 Hz7.5 kW at 380...400 V AC 50-60 Hz9 kW at 415 V AC 50-60 Hz, 9 kW at 440 V AC 50-60 Hz10 kW at 500 V AC 50-60 Hz, 10 kW at 660...690 V AC 50-60 Hz
- Power Dissipation Per Pole
- 0.8 W AC-32.5 W AC-1, 0.8 W AC-3e
- Product Name
- TeSys D, TeSys Deca
- Range Of Product
- TeSys D, TeSys Deca
- Utilisation Category
- AC-1, AC-3, AC-3e
- Certificate Agency
- DNV, CSA, CCC, UL, GL, LROS (Lloyds register of shipping), BV, RINA, GOST, UKCA
- [Ui] Rated Insulation Voltage
- signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2.765005058980401, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 5.709393367110104
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1102030EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 2.5 mOhm - Ith 32 A 50 Hz for power circuit
- Compatibility Code
- LC2D
- Contactor Coil Voltage
- 24 V DC low consumption
- Fire Resistance
- 850 °C IEC 60695-2-1
- Inrush Power In W
- 2.4-2.4 W 20 °C)
- Mechanical Durability
- 30 Mcycles
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH IEC 60068-2-30
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v5.9.4
- Time Constant
- 40 ms
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP110230EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 75
- Width Nominal
- 90 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for signalling circuit32 A (at 60 °C) for power circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
- Hold-in Power Consumption In W
- 2.4-2.4 W 20 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability1.65 Mcycles 18 A AC-3 <= 440 V, 1 Mcycles 32 A AC-1 <= 440 V, 1.65 Mcycles 18 A AC-3e <= 440 V
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
Mounting Supportplate, rail
Power Range4-6 kW 200-240 V 3 phase7-11 kW 380-440 V 3 phase, 7-11 kW 480-500 V 3 phase
RangeTeSys, TeSys Deca
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals Philips No 2, power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, power circuit 1.7 N.m screw clamp terminals Philips No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage24 V
[Ie] Rated Operational Current18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solidpower circuit screw clamp terminals 2 1.5-6 mm²flexible without cable endpower circuit screw clamp terminals 1 1-6 mm²flexible with cable endpower circuit screw clamp terminals 2 1-4 mm²flexible with cable end, power circuit screw clamp terminals 1 1.5-6 mm²solid, power circuit screw clamp terminals 2 1.5-6 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solidpower circuit screw clamp terminals 1 1.5-6 mm²flexible without cable end
Carbon Footprint Of The Distribution Phase [A4]0.31554765036402765, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.08738050085305292
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]35 kg CO2 eq., 35.11783783783784
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-150 A gG at <= 690 V coordination type 1 for power circuit35 A gG at <= 690 V coordination type 2 for power circuit
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Contact CompatibilityM5
Device Short NameLC2D
Flame RetardanceV1 conforming to UL 94
Interlocking Typemechanical
Motor Starter Typereversing contactor
Operating Time65.45...88.55 ms closing20...30 ms opening
Pole Contact Composition3 NO
Product Or Component Typereversing contactor
ReturnabilityYes
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Total Lifecycle Carbon Footprint44 kg CO2 eq.
Inf Motor Phase Current18 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh525.6
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal77 mm
[Icw] Rated Short-time Withstand Current40 A 40 °C - 10 min for power circuit84 A 40 °C - 1 min for power circuit145 A 40 °C - 10 s for power circuit240 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Uc] Control Circuit Voltage24 V24 V DC
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Rated Thermal Current (Ith)32 A
Package Weight(Lbs)1.140 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Environmental Disclosure
- ENVPEP110230EN
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint43.995164415145425
Circularity ProfileENVEOLI1102030EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP110230EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- TeSys D, TeSys Deca
Product Or Component Typereversing contactor
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
