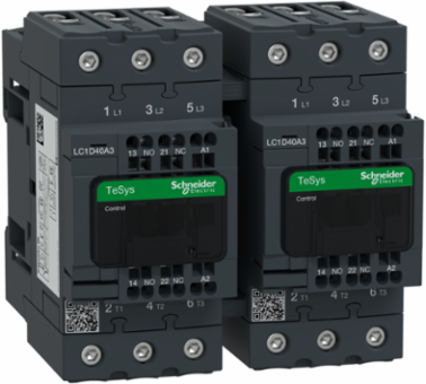

Schneider Electric LC2D40A3FE7 3 Pole Reversing Contactor 40A 115V AC 60Hz with Spring Terminals
- MPN: LC2D40A3FE7
- PPN: SCH-LC2D40A3FE7
CAD
$1054.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 40A/590V AC-3 (18.5kW@400V). It provides 115V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France

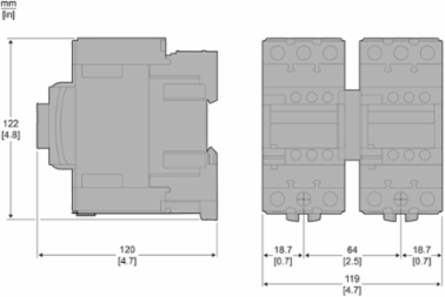

Depth120 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, AC 50/60 Hz
- Maximum Horse Power Rating
- 5 hp at 230/240 V AC 60 Hz for 1 phase motors10 hp at 230/240 V AC 60 Hz for 3 phase motors30 hp at 575/600 V AC 60 Hz for 3 phase motors, 10 hp at 200/208 V AC 60 Hz for 3 phase motors3 hp at 115 V AC 60 Hz for 1 phase motors, 30 hp at 460/480 V AC 60 Hz for 3 phase motors
- Maximum Motor Phase Current
- 40 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1800 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit
- Electrical Durability
- 1.5 Mcycles 40 A AC-3 <= 440 V, 1.4 Mcycles 60 A AC-1 <= 440 V, 1.5 Mcycles 40 A AC-3e <= 440 V
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
- Mounting Support
- plate, rail
- Range
- TeSys, TeSys Deca
- Utilisation Category
- AC-1, AC-3, AC-3e
- Certificate Agency
- UL, CSA, RINA, GOST, CCC, DNV, LROS (Lloyds register of shipping), GL, BV, UKCA
- [Uc] Control Circuit Voltage
- 115 V, 115 V AC 50/60 Hz
- Connections - Terminals
- power circuit EverLink BTR screw connectors 2 1-25 mm²flexible with cable endpower circuit EverLink BTR screw connectors 2 1-25 mm²solidcontrol circuit spring terminals 2 0.75-2.5 mm²flexible without cable end, power circuit EverLink BTR screw connectors 1 1-35 mm²flexible without cable end, power circuit EverLink BTR screw connectors 2 1-25 mm²flexible without cable end, power circuit EverLink BTR screw connectors 1 1-35 mm²flexible with cable end, power circuit EverLink BTR screw connectors 1 1-35 mm²solid, control circuit spring terminals 1 0.75-2.5 mm²flexible without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.8667358609084158, 0.9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.11289971467262913
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 107 kg CO2 eq., 107.15533235931866
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- without built-in suppressor module
- Contact Compatibility
- M2
- Fire Resistance
- 850 °C IEC 60695-2-1
- Inrush Power In Va
- 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)160-160 VA 50 Hz cos phi 0.75 (at 20 °C)
- Mechanical Durability
- 6 Mcycles
- Operating Time
- 4...19 ms opening12...26 ms closing
- Pole Contact Composition
- 3 NO
- Product Name
- TeSys Deca
- Protective Treatment
- TH IEC 60068-2-30
- Returnability
- No
- Signalling Circuit Frequency
- 25...400 Hz
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1503009EN
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; France, FR
- Recyclability Potential In %
- 62
- Width Nominal
- 119 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for signalling circuit60 A (at 60 °C) for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Rated Thermal Current (Ith)
- 60 A
- Package Weight(Lbs)
- 2.060 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw11 kW at 220...230 V AC 50-60 Hz18.5 kW at 380...400 V AC 50-60 Hz22 kW at 415 V AC 50-60 Hz, 22 kW at 440 V AC 50-60 Hz, 22 kW at 500 V AC 50-60 Hz30 kW at 660...690 V AC 50-60 Hz
Power Dissipation Per Pole2.4 W AC-35.4 W AC-1, 2.4 W AC-3e
Tightening Torquepower circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mmpower circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mmcontrol circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage115 V
[Ie] Rated Operational Current40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Ui] Rated Insulation Voltagesignalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.626960104420521, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.245614803882654
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance1.5 mOhm - Ith 60 A 50 Hz for power circuit
Compatibility CodeLC2D
Device Short NameLC2D
Heat Dissipation4-5 W 50/60 Hz
Interlocking Typemechanical
Number Of Poles3P
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typereversing contactor
Range Of ProductTeSys Deca
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Versionv6.2.4
Total Lifecycle Carbon Footprint120 kg CO2 eq.
Inf Motor Phase Current40 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1191.36
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal122 mm
[Icw] Rated Short-time Withstand Current72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit320 A 40 °C - 10 s for power circuit720 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
Hold-in Power Consumption In Va13-13 VA 60 Hz cos phi 0.3 (at 20 °C)15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Environmental Disclosure
- ENVPEP1503009EN
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint120.00754284320288
Circularity ProfileENVEOLI1503009EN
Eu Rohs DirectiveCompliant
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1503009EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- reversing contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
