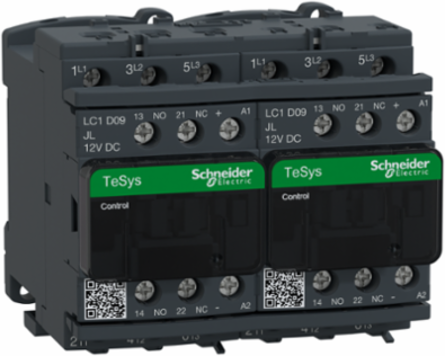

Schneider Electric LC2D09JL TeSys Deca Reversing Contactor 3 Pole 9A 12V DC Coil
Schneider Electric LC2D09JL TeSys Deca Reversing Contactor 3 Pole 9A 12V DC Coil
- MPN: LC2D09JL
- PPN: SCH-LC2D09JL
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$513.58/ EA
Description
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 120V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
- Height
- 77 mm
- Pollution Degree
- 3
- Flame Retardance
- V1 UL 94
- Protective Treatment
- TH IEC 60068-2-30
- Operating Altitude
- 0...3000 m
- Width
- 90 mm
Ambient Air Temperature For Operation-40-60 °C || 60-70 °C with derating
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Net Weight1.017 kg
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face IEC 60529
Fire Resistance850 °C IEC 60695-2-1
Depth95 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110230EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1102030EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Control Circuit Voltage Limits
- 0.1...0.3 Uc -40-70 °C drop-out DC || 0.8...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Time Constant
- 40 ms
- Signalling Circuit Frequency
- 25...400 Hz
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Minimum Switching Current5 mA for signalling circuit
Hold-In Power Consumption In W2.4-2.4 W 20 °C
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Minimum Switching Voltage17 V for signalling circuit
Inrush Power In W2.4-2.4 W 20 °C)
Specifications
- Product Certifications
- DNV || CSA || CCC || UL || GL || LROS (Lloyds register of shipping) || BV || RINA || GOST || UKCA
- [Uc] Control Circuit Voltage
- 12 V DC
- Power Dissipation Per Pole
- 0.2 W AC-3 || 1.56 W AC-1
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Mounting Support
- plate || rail
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Contactor Application
- resistive load || motor control
- Product Or Component Type
- reversing contactor
- Product Name
- TeSys Deca
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Range
- TeSys || TeSys Deca
- Device Presentation
- preassembled with reversing power busbar
- [Ie] Rated Operational Current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- Tightening Torque
- power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
- Mechanical Durability
- 30 Mcycles
- Operating Time
- 65.45...88.55 ms closing || 20...30 ms opening
- Motor Power Kw
- 2.2 kW at 220...230 V AC 50 Hz || 4 kW at 380...400 V AC 50 Hz || 4 kW at 415...440 V AC 50 Hz || 5.5 kW at 500 V AC 50 Hz || 5.5 kW at 660...690 V AC 50 Hz
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
- [Icw] Rated Short-Time Withstand Current
- 30 A 40 °C - 10 min for power circuit || 61 A 40 °C - 1 min for power circuit || 105 A 40 °C - 10 s for power circuit || 210 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
Interlocking Typemechanical
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
Average Impedance2.5 mOhm - Ith 25 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit || 25 A (at 60 °C) for power circuit
Control Circuit TypeDC low consumption
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Rated Breaking Capacity250 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1
Associated Fuse Rating25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit || 10 A gG for signalling circuit conforming to IEC 60947-5-1
Connections - Terminalspower circuit screw clamp terminals 1 1-4 mm²flexible without cable end || power circuit screw clamp terminals 2 1-4 mm²flexible without cable end || power circuit screw clamp terminals 1 1-4 mm²flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || power circuit screw clamp terminals 1 1-4 mm²solid || power circuit screw clamp terminals 2 1-4 mm²solid || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid
Pole Contact Composition3 NO
Utilisation CategoryAC-1 || AC-3
Maximum Operating Rate3600 cyc/h 60 °C
Electrical Durability0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V
Poles Description3P
Overvoltage CategoryIII
Motor Power Hp0.5 hp at 115 V AC 60 Hz for 1 phase motors || 1 hp at 230/240 V AC 60 Hz for 1 phase motors || 2 hp at 200/208 V AC 60 Hz for 3 phases motors || 2 hp at 230/240 V AC 60 Hz for 3 phases motors || 5 hp at 460/480 V AC 60 Hz for 3 phases motors || 7.5 hp at 575/600 V AC 60 Hz for 3 phases motors
Device Short NameLC2D
Protective Coverwith
