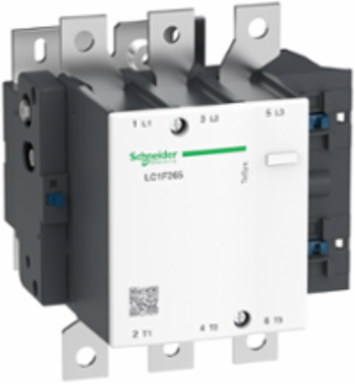

Schneider Electric LC1F265R7 TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 440 V AC

MPN: LC1F265R7
PPN: SCH-LC1F265R7

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$3245.42/ EA

Qty:

Loading add to cart quantity...

Description

TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 440 V AC

Specifications

Environment

Ambient Air Temperature For Operation: -5-55 °C

Net Weight: 7.44 kg

Protective Treatment: TH

Operating Altitude: 3000 m without derating

Depth: 213 mm

Height203 mm

Ambient Air Temperature For Storage-60-80 °C

Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106

Width201.5 mm

Permissible Ambient Air Temperature Around The Device-40-70 °C

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP080208EN

Pvc Free: Yes

Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity Profile: ENVEOLI100418

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationReference contains Substances of Very High Concern above the threshold

China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information

Eu Rohs DirectiveCompliant with Exemptions

Complementary

Product Certifications: RMRoS || CCC || BV || CB || ABS || LROS (Lloyds register of shipping) || DNV || UL || RINA || UKCA

Average Impedance: 0.3 mOhm - Ith 350 A 50 Hz

Control Circuit Voltage Limits: operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.15...0.2 Uc 40...400 Hz 55 °C)

Mounting Support: plate

Rated Breaking Capacity: 2120 A conforming to IEC 60947-4-1

[Uimp] Rated Impulse Withstand Voltage: 8 kV

Connections - Terminals: control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end || power circuit bar 2 32 x 4 mm || power circuit lugs-ring terminals 1 240-240 mm² || power circuit connector 1 240-240 mm² || power circuit bolted connection

Operating Time: 40...65 ms closing || 100...170 ms opening

Mechanical Durability: 10 Mcycles

Compatibility Code: LC1F

Overvoltage Category: III

[Ui] Rated Insulation Voltage: 1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C

Heat Dissipation: 8-8 W

Power Dissipation Per Pole37 W AC-1 || 21 W AC-3

[Ith] Conventional Free Air Thermal Current350 A (at 40 °C)

StandardsIEC 60947-4-1 || EN 60947-1 || EN 60947-4-1 || IEC 60947-1 || JIS C8201-4-1

Control Circuit TypeAC 40...400 Hz

Associated Fuse Rating315 A aM at <= 440 V || 400 A gG at <= 440 V

Inrush Power In Va650-650 VA, 40...400 Hz 0.9 20 °C)

Pole Contact Composition3 NO

Maximum Operating Rate2400 cyc/h 55 °C

Tightening Torquecontrol circuit 1.2 N.m || power circuit 35 N.m

Hold-In Power Consumption In Va10-10 VA, 40...400 Hz 0.9 20 °C)

Motor Power Kw132 kW at 380...400 V AC 50/60 Hz (AC-3) || 140 kW at 415 V AC 50/60 Hz (AC-3) || 140 kW at 440 V AC 50/60 Hz (AC-3) || 160 kW at 500 V AC 50/60 Hz (AC-3) || 160 kW at 660...690 V AC 50/60 Hz (AC-3) || 147 kW at 1000 V AC 50/60 Hz (AC-3) || 75 kW at 220...230 V AC 50/60 Hz (AC-3) || 51 kW at 400 V AC 50/60 Hz (AC-4)

[Icw] Rated Short-Time Withstand Current2200 A 40 °C - 10 s || 1230 A 40 °C - 30 s || 950 A 40 °C - 1 min || 620 A 40 °C - 3 min || 480 A 40 °C - 10 min

Specifications

[Uc] Control Circuit Voltage: 440 V AC 40...400 Hz

[Ue] Rated Operational Voltage: <= 1000 V AC-1 || <= 690 V AC-3 || <= 690 V AC-4 || <= 460 V DC

Product Or Component Type: contactor

Utilisation Category: AC-3 || AC-1 || AC-4

Poles Description: 3P

Range Of ProductTeSys F

Contactor Applicationmotor control || resistive load

RangeTeSys

[Ie] Rated Operational Current350 A (at <40 °C) at <= 440 V AC AC-1 || 265 A (at <55 °C) at <= 440 V AC AC-3

Device Short NameLC1F

Schneider Electric LC1F265R7 TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 440 V AC
