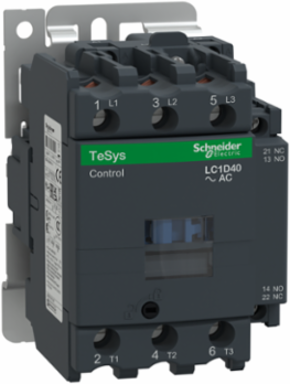

Schneider Electric LC1D40G7 TeSys Deca Contactor 3P 40A 120V AC Coil, Compact 75mm Width
- MPN: LC1D40G7
- PPN: SCH-LC1D40G7
CAD
$413.76
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3 (18.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Features
- The Schneider LC1D40G7 is a 3-pole TeSys Deca contactor engineered for demanding industrial loads. Rated for 40 Amps (AC-3) and up to 60 Amps (AC-1), it is the ideal solution for controlling 3-phase motors up to 18.5 kW (25 hp) at 400/415V, making it a powerhouse for Canadian commercial HVAC systems, large conveyors, and industrial pump panels.
- The "G7" code indicates a 120V AC (50/60 Hz) control coil, the most common standard for hard-wired control systems in North American facilities. This allows for seamless integration into existing control logic without the need for additional step-down transformers or complex DC power supplies.
- This contactor features Schneider's patented EverLink power terminals. This innovative "creep-free" technology maintains a constant pressure on the conductor over time, compensating for wire "cold flow." This significantly reduces the risk of loose connections and electrical hot spots, ensuring long-term reliability in high-vibration Canadian manufacturing environments.
- Every LC1D40G7 includes 1 NO (Normally Open) and 1 NC (Normally Closed) auxiliary contacts as standard. This allows you to integrate essential "Run" and "Fault" status monitoring into your automation system or safety interlocks without the added expense or assembly time of auxiliary add-on blocks.
- Despite its high power rating, the LC1D40G7 maintains a compact footprint and mounts easily on a 35mm DIN rail or backplate. It is designed for perfect mechanical and electrical coordination with LRD3 thermal overload relays and GV3 manual motor starters, allowing you to build a fully protected, professional-grade motor branch circuit in seconds.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, France, United States |
|---|
| Depth | 119 mm |
|---|
Complementary Attributes
| Control Circuit Type | AC 50/60 Hz, AC 50/60 Hz |
|---|---|
| Maximum Horse Power Rating | 10 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to UL3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL30 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to UL30 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to UL5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL, 10 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to CSA, 10 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to UL, 10 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to CSA, 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA30 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to CSA, 30 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to CSA, 5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA |
| Maximum Motor Phase Current | 40 A |
| Minimum Switching Current | 5 mA for control circuit |
| Rated Breaking Capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (60-60 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (60-60 °C):operational AC 50 Hz0.85...1.1 Uc (60-60 °C):operational AC 60 Hz |
|---|---|
| Irms Rated Making Capacity | 140 A AC for control circuit conforming to IEC 60947-5-1800 A at 440 V for power circuit conforming to IEC 60947 |
| Maximum Operating Rate | 3600 cyc/h at 60 °C |
| Minimum Switching Voltage | 17 V for control circuit |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Associated Fuse Rating | 10 A gG for control circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit |
| Inrush Power In Va | 140-140 VA cos phi 0.75 (at 20 °C), 160-160 VA cos phi 0.75 (at 20 °C) |
| Mechanical Robustness | shocks contactor opened 10 Gn for 11 ms)shocks contactor closed 15 Gn for 11 ms)vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz) |
| Mounting Support | rail, plate |
| Utilisation Category | AC-3, AC-4, AC-1, AC-2 |
| Certificate Agency | DNV, GL, CCC, LROS (Lloyds register of shipping), RINA, BV, GOST, UL, CSA, CB |
| [Ui] Rated Insulation Voltage | power circuit 600 V ULpower circuit 690 V IEC 60947-1control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSAcontrol circuit 690 V IEC 60947-1 |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 3.328416174215296, 3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 8.921945858891672 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Coil Technology | without built-in bidirectional peak limiting diode suppressor |
| Device Short Name | LC1D |
| Flame Retardance | V1 conforming to UL 94 |
| Mechanical Durability | 6 Mcycles |
| Operating Time | 12...26 ms closing4...19 ms opening |
| Pole Contact Composition | 3 NO |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 52 kg CO2 eq. |
| Inf Motor Phase Current | 40 A |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 595.68 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 127 mm |
| [Ie] Rated Operational Current | 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz |
| Hold-in Power Consumption In Va | 13-13 VA 50 Hz cos phi 0.3 (at 20 °C)15-15 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Package Weight(Lbs) | 1.445 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Contactor Application | resistive load, motor control |
| Insulation Resistance | > 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit |
| Motor Power Kw | 18.5 kW at 380...400 V AC 50/60 Hz (AC-3)22 kW at 1000 V AC 50/60 Hz (AC-3), 22 kW at 415 V AC 50/60 Hz (AC-3), 22 kW at 440 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3)30 kW at 660...690 V AC 50/60 Hz (AC-3)11 kW at 220...230 V AC 50/60 Hz (AC-3), 9 kW at 400 V AC 50/60 Hz (AC-4) |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminal Philips No 2power circuit 5 N.m screw clamp terminal flat Ø 6 mm, power circuit 5 N.m screw clamp terminal flat Ø 8 mm |
| Control Circuit Voltage | 120 V |
| [Uc] Control Circuit Voltage | 120 V, 120 V AC 50/60 Hz |
| Connections - Terminals | control circuit: 2 1-2.5 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: flexible with cable endpower circuit: 2 2.5-35 mm² - cable stiffness: solid with cable endpower circuit: 1 2.5-35 mm² - cable stiffness: flexible without cable endpower circuit: 2 2.5-25 mm² - cable stiffness: flexible without cable endpower circuit: 1 2.5-35 mm² - cable stiffness: flexible with cable endpower circuit: 2 2.5-35 mm² - cable stiffness: flexible with cable endscrew clamp terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 1 2.5-35 mm² - cable stiffness: solid with cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1760063361869087, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3 kg CO2 eq., 0.2523595925959343 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 40 kg CO2 eq., 39.799710144927516 |
| Local Publishable Date | 2026-07-07 |
| Stocking Flag | N |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Impedance | 1.5 mOhm - Ith 60 A 50 Hz for power circuit |
| Compatibility Code | LC1D |
| Fire Resistance | 850 °C IEC 60695-2-1 |
| Heat Dissipation | 4-5 W at 50/60 Hz for control circuit |
| Number Of Poles | 3P |
| Overvoltage Category | III |
| Power Dissipation Per Pole | 5.4 W AC-12.4 W AC-3 |
| Product Or Component Type | contactor |
| Range Of Product | TeSys Deca |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP1102005EN |
| Pep Verification Date | 2025-11-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CZ |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 76 |
| Width Nominal | 75 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) for control circuit60 A (at 60 °C) for power circuit |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Permissible Ambient Air Temperature Around The Device | -5-60 °C, -40-70 °C at Uc, -40-70 °C at Uc-5-60 °C, -40-70 °C at Uc, -40-70 °C at Uc |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 52.47843810681733 |
| Environmental Disclosure | ENVPEP1102005EN |
| Operating Altitude | 9842.52 ft (3000 m) without derating |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ip Degree Of Protection | IP2X IEC 60529, IP2X VDE 0106 |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Climatic Withstand | IACS E10 exposure to damp heat |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1102005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | contactor |
|---|
| Range Of Product | TeSys Deca |
|---|
ETIM
| ETIM 8 | EC000066 |
|---|
| ETIM 9 | EC000066 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
