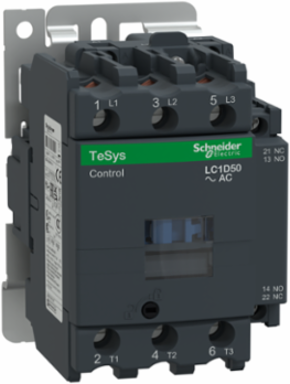

Schneider Electric LC1D50G7 TeSys Deca Contactor 3P 50A 120V AC with Auxiliary Contacts
- MPN: LC1D50G7
- PPN: SCH-LC1D50G7
CAD
$426.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Contactor is rated for 15HP at 200 to 208VAC, 15HP at 240VAC, 40HP at 480VAC and 40HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 110A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Features
- The Schneider Electric LC1D50G7 is a 3-pole (3 NO) power contactor from the TeSys Deca (formerly TeSys D) series. It is a heavy-duty industrial switch designed primarily for starting and controlling 3-phase motors. In the Canadian industrial landscape, this frame size is the "sweet spot" for medium-sized pumps, fans, and compressors.
- The "50" in the part number signifies its 50-Amp inductive (AC-3) rating. In a typical 600V Canadian industrial environment, this contactor is capable of controlling a 40 HP (30 kW) motor. For non-inductive resistive loads (AC-1), such as industrial heaters, its capacity jumps to 80 Amps, making it a versatile component for various power distribution tasks.
- The "G7" suffix is the specific code for the control coil voltage. It indicates a 120V AC (50/60 Hz) coil. This is the most common control voltage in North America, allowing the contactor to be triggered directly by standard PLC outputs, pushbuttons, or limit switches without needing specialized power supplies.
- Every LC1D50G7 comes factory-equipped with two built-in auxiliary contacts: 1 Normally Open (NO) and 1 Normally Closed (NC). These are essential for providing feedback to a control system for example, the NO contact can light up a "Running" pilot light on a panel, while the NC contact can be used in an electrical interlock circuit to prevent two motors from running simultaneously.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Depth119 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, AC 50/60 Hz
- Maximum Horse Power Rating
- 15 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to UL15 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to UL40 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to UL40 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to UL7.5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL, 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA, 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL, 15 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to CSA, 15 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to CSA40 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to CSA, 40 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to CSA, 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA
- Maximum Motor Phase Current
- 50 A
- Minimum Switching Current
- 5 mA for control circuit
- Rated Breaking Capacity
- 900 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.3...0.6 Uc (60-60 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (60-60 °C):operational AC 50 Hz0.85...1.1 Uc (60-60 °C):operational AC 60 Hz
Irms Rated Making Capacity140 A AC for control circuit conforming to IEC 60947-5-1900 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for control circuit conforming to IEC 60947-5-1100 A gG at <= 690 V coordination type 1 for power circuit, 100 A gG at <= 690 V coordination type 2 for power circuit
- Inrush Power In Va
- 140-140 VA cos phi 0.75 (at 20 °C), 160-160 VA cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- shocks contactor opened 10 Gn for 11 ms)shocks contactor closed 15 Gn for 11 ms)vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz)
- Mounting Support
- plate, rail
- Tightening Torque
- control circuit 1.2 N.m screw clamp terminal flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminal Philips No 2power circuit 5 N.m screw clamp terminal flat Ø 6 mm, power circuit 5 N.m screw clamp terminal flat Ø 8 mm, control circuit 1.2 N.m screw clamp terminal pozidriv No 2
- Control Circuit Voltage
- 120 V
- [Ie] Rated Operational Current
- 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- [Ui] Rated Insulation Voltage
- power circuit 600 V ULpower circuit 690 V IEC 60947-1control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSAcontrol circuit 690 V IEC 60947-1
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3.328416174215296, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 8.921945858891672
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- without built-in bidirectional peak limiting diode suppressor
- Device Short Name
- LC1D
- Flame Retardance
- V1 conforming to UL 94
- Mechanical Durability
- 6 Mcycles
- Operating Time
- 12...26 ms closing4...19 ms opening
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- contactor
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1102005EN
- Pep Verification Date
- 2025-11-20
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 76
- Width Nominal
- 55 mm
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Hold-in Power Consumption In Va
- 13-13 VA 50 Hz cos phi 0.3 (at 20 °C)15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
- Package Weight(Lbs)
- 1.446 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Insulation Resistance> 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit
Motor Power Kw22 kW at 380...400 V AC 50/60 Hz (AC-3)25 kW at 415 V AC 50/60 Hz (AC-3)30 kW at 440 V AC 50/60 Hz (AC-3), 30 kW at 500 V AC 50/60 Hz (AC-3)33 kW at 660...690 V AC 50/60 Hz (AC-3)15 kW at 220...230 V AC 50/60 Hz (AC-3), 11 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole3.7 W AC-39.6 W AC-1, 3.7 W AC-3e
Utilisation CategoryAC-3, AC-2, AC-4, AC-1, AC-3e
Certificate AgencyGOST, LROS (pending), UL, CCC, RINA, CSA, BV, GL, DNV, UKCA
[Uc] Control Circuit Voltage120 V, 120 V AC 50/60 Hz
Connections - Terminalscontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 2.5-35 mm² - cable stiffness: solid with cable endpower circuit: connector 1 2.5-35 mm² - cable stiffness: flexible without cable endpower circuit: connector 2 2.5-25 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 2.5-35 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 2.5-35 mm² - cable stiffness: flexible with cable endscrew clamp terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 2.5-35 mm² - cable stiffness: solid with cable end
Carbon Footprint Of The Distribution Phase [A4]0.1760063361869087, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.3 kg CO2 eq., 0.2523595925959343
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]46 kg CO2 eq., 45.50628623188404
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance1.5 mOhm - Ith 80 A 50 Hz for power circuit
Compatibility CodeLC1D
Fire Resistance850 °C IEC 60695-2-1
Heat Dissipation4-5 W at 50/60 Hz for control circuit
Number Of Poles3P
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint58 kg CO2 eq.
Inf Motor Phase Current50 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh681.09
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal122 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for control circuit80 A (at 60 °C) for power circuit
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Permissible Ambient Air Temperature Around The Device
- -5-60 °C, -40-70 °C at Uc, -40-70 °C at Uc-5-60 °C, -40-70 °C at Uc, -40-70 °C at Uc
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 58.18501419377385
- Environmental Disclosure
- ENVPEP1102005EN
- Operating Altitude
- 9842.52 ft (3000 m) without derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-20
- Psr Version
- PSR-0005-ed2-2016 03 29
Ip Degree Of ProtectionIP2X IEC 60529, IP2X VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Climatic WithstandIACS E10 exposure to damp heat
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1102005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
