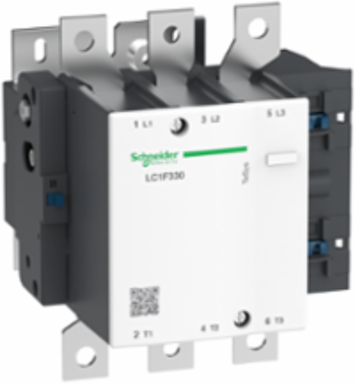

Schneider Electric LC1F330M7 TeSys F Contactor 3P 330A AC-3 220V Coil, 2400 Cycles/Hour
- MPN: LC1F330M7
- PPN: SCH-LC1F330M7
CAD
$4086.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys F contactor, 3 poles (3NO), 330A/1000V AC-3, for motor applications up to 160kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 220 V AC 40...400 Hz
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Product Or Component Type
- contactor
- Utilisation Category
- AC-3 || AC-4 || AC-1
- Poles Description
- 3P
Range Of ProductTeSys F
Contactor Applicationmotor control || resistive load
RangeTeSys
[Ie] Rated Operational Current400 A (at <40 °C) at <= 440 V AC AC-1 || 330 A (at <55 °C) at <= 440 V AC AC-3
Device Short NameLC1F
Complementary
- Product Certifications
- LROS (Lloyds register of shipping) || CB || UL || BV || ABS || RMRoS || RINA || CSA || DNV || UKCA
- Average Impedance
- 0.28 mOhm - Ith 400 A 50 Hz
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.35...0.55 Uc 40...400 Hz 55 °C)
- Mounting Support
- plate
- Contactor Coil Voltage
- 220 V AC standard
- Power Range
- 55-100 kW 200-240 V 3 phases || 110-220 kW 480-500 V 3 phases || 110-220 kW 380-440 V 3 phases
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end || power circuit lugs-ring terminals 1 240-240 mm² || power circuit bar 2 30 x 5 mm || power circuit bolted connection
- Motor Starter Type
- direct on-line contactor
- Maximum Operating Rate
- 2400 cyc/h 55 °C
- Tightening Torque
- control circuit 1.2 N.m || power circuit 35 N.m
- Hold-In Power Consumption In Va
- 10-10 VA, 40...400 Hz 0.9 20 °C)
- Motor Power Kw
- 160 kW at 380...400 V AC 50/60 Hz (AC-3) || 180 kW at 415 V AC 50/60 Hz (AC-3) || 200 kW at 440 V AC 50/60 Hz (AC-3) || 200 kW at 500 V AC 50/60 Hz (AC-3) || 220 kW at 660...690 V AC 50/60 Hz (AC-3) || 160 kW at 1000 V AC 50/60 Hz (AC-3) || 100 kW at 220...230 V AC 50/60 Hz (AC-3) || 59 kW at 400 V AC 50/60 Hz (AC-4)
- [Icw] Rated Short-Time Withstand Current
- 2650 A 40 °C - 10 s || 1800 A 40 °C - 30 s || 1300 A 40 °C - 1 min || 900 A 40 °C - 3 min || 750 A 40 °C - 10 min
Power Dissipation Per Pole44 W AC-1 || 31 W AC-3
[Ith] Conventional Free Air Thermal Current400 A (at 40 °C)
StandardsEN 60947-1 || EN 60947-4-1 || JIS C8201-4-1 || IEC 60947-4-1 || IEC 60947-1
Control Circuit TypeAC 40...400 Hz
Rated Breaking Capacity2640 A conforming to IEC 60947-4-1
Associated Fuse Rating400 A aM at <= 440 V || 500 A gG at <= 440 V
Inrush Power In Va650-650 VA, 40...400 Hz 0.9 20 °C)
Pole Contact Composition3 NO
Operating Time40...65 ms closing || 100...170 ms opening
Mechanical Durability10 Mcycles
Compatibility CodeLC1F
Overvoltage CategoryIII
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
Heat Dissipation8-8 W
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
- Net Weight
- 8.6 kg
- Protective Treatment
- TH
- Operating Altitude
- 3000 m without derating
- Depth
- 219 mm
Height206 mm
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106
Width213 mm
Permissible Ambient Air Temperature Around The Device-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1505009EN
