TeSys F Contactor 3P 400A 220V AC Coil, IP20, 10 Mcycles
Schneider Electric

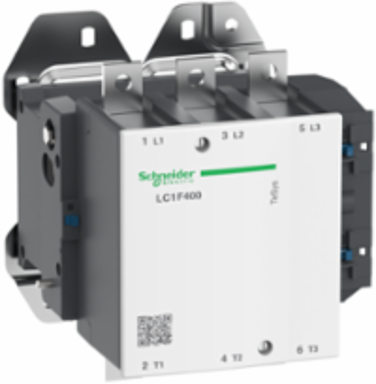

Schneider Electric LC1F400M7 TeSys F Contactor 3P 400A 220V AC Coil, IP20, 10 Mcycles

  • MPN: LC1F400M7
  • PPN: SCH-LC1F400M7

CAD

$4810.28

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

TeSys F contactor, 3 poles (3NO), 400A/1000V AC-3, for motor applications up to 200kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France
Depth219 mm

Complementary Attributes

Control Circuit Voltage Limits
operational 0.85...1.1 Uc 40...400 Hz 55 °C), drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
Maximum Motor Phase Current
400 A
Rated Breaking Capacity
3200 A conforming to IEC 60947-4-1
Control Circuit TypeAC 40...400 Hz
Maximum Operating Rate2400 cyc/h 55 °C

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
400 A aM at <= 440 V, 500 A gG at <= 440 V
Motor Power Kw
75 kW at 400 V AC 50/60 Hz (AC-4), 200 kW at 380...400 V AC 50/60 Hz (AC-3), 220 kW at 415 V AC 50/60 Hz (AC-3), 250 kW at 440 V AC 50/60 Hz (AC-3), 257 kW at 500 V AC 50/60 Hz (AC-3), 280 kW at 660...690 V AC 50/60 Hz (AC-3), 185 kW at 1000 V AC 50/60 Hz (AC-3), 110 kW at 220...230 V AC 50/60 Hz (AC-3)
Power Dissipation Per Pole
65 W AC-1, 42 W AC-3
Tightening Torque
control circuit 1.2 N.m, power circuit 35 N.m
Certificate Agency
RMRoS, CB, RINA, DNV, LROS (Lloyds register of shipping), CSA, UL, ABS, BV, UKCA
[Ie] Rated Operational Current
500 A (at <40 °C) at <= 440 V AC AC-1, 400 A (at <55 °C) at <= 440 V AC AC-3
[Ue] Rated Operational Voltage
<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 2 1-4 mm²solid without cable endcontrol circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid without cable end, power circuit bar 2 30 x 5 mm, power circuit lugs-ring terminals 2 150-150 mm², power circuit bolted connection
Carbon Footprint Of The End-of-life Phase [C1 To C4]
17 kg CO2 eq., 17.4072247
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
55 kg CO2 eq., 55.34456887
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1505009EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2542
China Rohs In Scope
No
Without Single Use Plastic
No
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Compatibility Code
LC1F
Device Short Name
LC1F
Heat Dissipation
14-14 W
Mechanical Durability
10 Mcycles
Mounting Support
plate
Overvoltage Category
III
Product Availability
Stock - Normally stocked in distribution facility
Protective Treatment
TH
Range Of Product
TeSys F
Software Version
v6.1
Total Lifecycle Carbon Footprint
3 555 kg CO2 eq.
Control Circuit Voltage 18 Control Circuit Voltage
220 V
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
3985.8
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; China, CN
Height Nominal
206 mm
[Ith] Conventional Free Air Thermal Current
500 A (at 40 °C)
Hold-in Power Consumption In Va
15-15 VA, 40...400 Hz 0.9 20 °C)
Carbon Footprint (Kg Co2 Eq, Total Life Cycle)
3555.1638
Package Weight(Lbs)
9.114 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Operating Time40...65 ms closing, 100...170 ms opening
Power Range110-220 kW 480-500 V 3 phase, 110-220 kW 380-440 V 3 phase, 110-220 kW 200-240 V 3 phase, 250-500 kW 480-500 V 3 phase
Utilisation CategoryAC-1, AC-4, AC-3
[Icw] Rated Short-time Withstand Current3600 A 40 °C - 10 s, 2400 A 40 °C - 30 s, 1700 A 40 °C - 1 min, 1200 A 40 °C - 3 min, 1000 A 40 °C - 10 min
[Uc] Control Circuit Voltage220 V, 220 V AC 40...400 Hz
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
Carbon Footprint Of The Distribution Phase [A4]3.019654764, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.02426561, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]3 479 kg CO2 eq., 3479.368086
Local Publishable Date2024-10-29
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.26 mOhm - Ith 500 A 50 Hz
Contactor Coil Voltage220 V AC standard
Energy Efficiency OptimizedFalse
Inrush Power In Va1075-1075 VA, 40...400 Hz 0.9 20 °C)
Motor Starter Typedirect on-line contactor
Number Of Poles3P
Pole Contact Composition3 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1505009EN
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential, In %95
Width Nominal213 mm
[Uimp] Rated Impulse Withstand Voltage8 kV
Rated Thermal Current (Ith)500 A
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Total ( Kg Co2 Eq.) Total Life Cycle3555.1638

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Take Back
No
Mercury Free
Yes
Circularity Profile
ENVEOLI1505009EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Permissible Ambient Air Temperature Around The Device
-40-70 °C-40-70 °C
Pep Code
ENVPEP1505009EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint3555.1638
Environmental DisclosureENVPEP1505009EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys F
