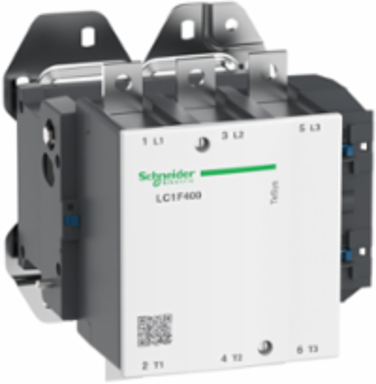

Schneider Electric LC1F400Q7 TeSys F Contactor, 3P (3 NO), 400A, 380V AC Coil, IP20
- MPN: LC1F400Q7
- PPN: SCH-LC1F400Q7
CAD
$4810.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys F contactor, 3 poles (3NO), 400A/1000V AC-3, for motor applications up to 200kW@400V. It provides a low sealed consumption 380V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 380 V AC 40...400 Hz
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Product Or Component Type
- contactor
- Utilisation Category
- AC-4 || AC-1 || AC-3
- Poles Description
- 3P
Range Of ProductTeSys F
Contactor Applicationresistive load || motor control
RangeTeSys
[Ie] Rated Operational Current500 A (at <40 °C) at <= 440 V AC AC-1 || 400 A (at <55 °C) at <= 440 V AC AC-3
Device Short NameLC1F
Complementary
- Product Certifications
- LROS (Lloyds register of shipping) || CCC || RINA || ABS || BV || CB || DNV || UL || RMRoS || UKCA
- Average Impedance
- 0.26 mOhm - Ith 500 A 50 Hz
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
- Mounting Support
- plate
- Rated Breaking Capacity
- 3200 A conforming to IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end || power circuit bar 2 30 x 5 mm || power circuit lugs-ring terminals 2 150-150 mm² || power circuit bolted connection
- Operating Time
- 40...65 ms closing || 100...170 ms opening
- Mechanical Durability
- 10 Mcycles
- Compatibility Code
- LC1F
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
- Heat Dissipation
- 14-14 W
Power Dissipation Per Pole65 W AC-1 || 42 W AC-3
[Ith] Conventional Free Air Thermal Current500 A (at 40 °C)
StandardsIEC 60947-4-1 || EN 60947-1 || EN 60947-4-1 || IEC 60947-1 || JIS C8201-4-1
Control Circuit TypeAC 40...400 Hz
Associated Fuse Rating400 A aM at <= 440 V || 500 A gG at <= 440 V
Inrush Power In Va1075-1075 VA, 40...400 Hz 0.9 20 °C)
Pole Contact Composition3 NO
Maximum Operating Rate2400 cyc/h 55 °C
Tightening Torquecontrol circuit 1.2 N.m || power circuit 35 N.m
Hold-In Power Consumption In Va15-15 VA, 40...400 Hz 0.9 20 °C)
Motor Power Kw75 kW at 400 V AC 50/60 Hz (AC-4) || 200 kW at 380...400 V AC 50/60 Hz (AC-3) || 220 kW at 415 V AC 50/60 Hz (AC-3) || 250 kW at 440 V AC 50/60 Hz (AC-3) || 257 kW at 500 V AC 50/60 Hz (AC-3) || 280 kW at 660...690 V AC 50/60 Hz (AC-3) || 185 kW at 1000 V AC 50/60 Hz (AC-3) || 110 kW at 220...230 V AC 50/60 Hz (AC-3)
[Icw] Rated Short-Time Withstand Current3600 A 40 °C - 10 s || 2400 A 40 °C - 30 s || 1700 A 40 °C - 1 min || 1200 A 40 °C - 3 min || 1000 A 40 °C - 10 min
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
- Net Weight
- 9.1 kg
- Protective Treatment
- TH
- Operating Altitude
- 3000 m without derating
- Depth
- 219 mm
Height206 mm
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106
Width213 mm
Permissible Ambient Air Temperature Around The Device-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1505009EN
