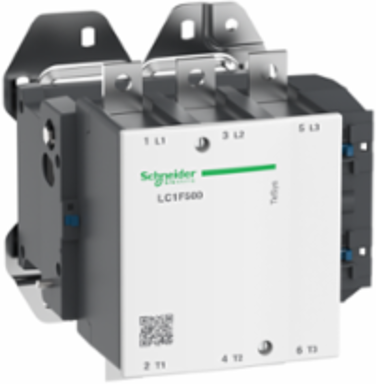

Schneider Electric LC1F500L7 TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 208 V AC
Schneider Electric LC1F500L7 TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 208 V AC
- MPN: LC1F500L7
- PPN: SCH-LC1F500L7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 208 V AC
Specifications
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
- Net Weight
- 11.35 kg
- Protective Treatment
- TH
- Operating Altitude
- 3000 m without derating
- Depth
- 232 mm
Height238 mm
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106
Width233 mm
Permissible Ambient Air Temperature Around The Device-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1505009EN
Complementary
- Product Certifications
- RINA || DNV || UL || ABS || CCC || BV || RMRoS || CB || LROS (Lloyds register of shipping) || UKCA
- Average Impedance
- 0.18 mOhm - Ith 700 A 50 Hz
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
- Mounting Support
- plate
- Rated Breaking Capacity
- 4000 A conforming to IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end || power circuit bar 2 40 x 5 mm || power circuit lugs-ring terminals 2 240-240 mm² || power circuit bolted connection
- Operating Time
- 40...65 ms closing || 100...170 ms opening
- Mechanical Durability
- 10 Mcycles
- Compatibility Code
- LC1F
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
- Heat Dissipation
- 18-18 W
Power Dissipation Per Pole88 W AC-1 || 45 W AC-3
[Ith] Conventional Free Air Thermal Current700 A (at 40 °C)
StandardsJIS C8201-4-1 || IEC 60947-4-1 || EN 60947-4-1 || EN 60947-1 || IEC 60947-1
Control Circuit TypeAC 40...400 Hz
Associated Fuse Rating500 A aM at <= 440 V || 800 A gG at <= 440 V
Inrush Power In Va1100-1100 VA, 40...400 Hz 0.9 20 °C)
Pole Contact Composition3 NO
Maximum Operating Rate2400 cyc/h 55 °C
Tightening Torquecontrol circuit 1.2 N.m || power circuit 35 N.m
Hold-In Power Consumption In Va18-18 VA, 40...400 Hz 0.9 20 °C)
Motor Power Kw250 kW at 380...400 V AC 50/60 Hz (AC-3) || 280 kW at 415 V AC 50/60 Hz (AC-3) || 295 kW at 440 V AC 50/60 Hz (AC-3) || 355 kW at 500 V AC 50/60 Hz (AC-3) || 335 kW at 660...690 V AC 50/60 Hz (AC-3) || 335 kW at 1000 V AC 50/60 Hz (AC-3) || 147 kW at 220...230 V AC 50/60 Hz (AC-3) || 80 kW at 400 V AC 50/60 Hz (AC-4)
[Icw] Rated Short-Time Withstand Current4200 A 40 °C - 10 s || 3200 A 40 °C - 30 s || 2400 A 40 °C - 1 min || 1500 A 40 °C - 3 min || 1200 A 40 °C - 10 min
Specifications
- [Uc] Control Circuit Voltage
- 208 V AC 40...400 Hz
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Product Or Component Type
- contactor
- Utilisation Category
- AC-4 || AC-1 || AC-3
- Poles Description
- 3P
Range Of ProductTeSys F
Contactor Applicationresistive load || motor control
RangeTeSys
[Ie] Rated Operational Current700 A (at <40 °C) at <= 440 V AC AC-1 || 500 A (at <55 °C) at <= 440 V AC AC-3
Device Short NameLC1F
