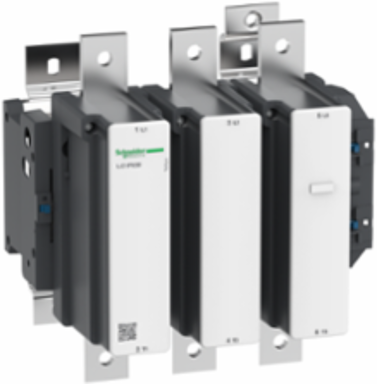

Schneider Electric LC1F630G7 TeSys F Contactor 3P 630A 440V AC 110V Coil IP20
- MPN: LC1F630G7
- PPN: SCH-LC1F630G7
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys F contactor, 3 poles (3NO), 630A/1000V AC-3, for motor applications up to 250kW@400V. It provides a low sealed consumption 120/127V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 1200 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 120 V AC 40...400 Hz
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Product Or Component Type
- contactor
- Utilisation Category
- AC-1 || AC-4 || AC-3
- Poles Description
- 3P
Range Of ProductTeSys F
Contactor Applicationmotor control || resistive load
RangeTeSys
[Ie] Rated Operational Current1000 A (at <40 °C) at <= 440 V AC AC-1 || 630 A (at <55 °C) at <= 440 V AC AC-3
Device Short NameLC1F
Complementary
- Product Certifications
- LROS (Lloyds register of shipping) || RINA || CCC || BV || ABS || UL || DNV || CB || RMRoS || UKCA
- Average Impedance
- 0.12 mOhm - Ith 1000 A 50 Hz
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.25...0.5 Uc 40...400 Hz 55 °C)
- Mounting Support
- plate
- Rated Breaking Capacity
- 5040 A conforming to IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end || power circuit bar 2 60 x 5 mm || power circuit bolted connection
- Operating Time
- 40...80 ms closing || 100...200 ms opening
- Mechanical Durability
- 5 Mcycles
- Compatibility Code
- LC1F
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
- Heat Dissipation
- 20-20 W
Power Dissipation Per Pole120 W AC-1 || 48 W AC-3
[Ith] Conventional Free Air Thermal Current1000 A (at 40 °C) || 1250 A
StandardsJIS C8201-4-1 || IEC 60947-4-1 || IEC 60947-1 || EN 60947-4-1 || EN 60947-1
Control Circuit TypeAC 40...400 Hz
Associated Fuse Rating1000 A gG at <= 440 V || 630 A aM at <= 440 V
Inrush Power In Va1650-1650 VA, 40...400 Hz 0.9 20 °C)
Pole Contact Composition3 NO
Maximum Operating Rate1200 cyc/h 55 °C
Tightening Torquecontrol circuit 1.2 N.m || power circuit 58 N.m
Hold-In Power Consumption In Va22-22 VA, 40...400 Hz 0.9 20 °C)
Motor Power Kw335 kW at 380...400 V AC 50/60 Hz (AC-3) || 375 kW at 415 V AC 50/60 Hz (AC-3) || 400 kW at 440 V AC 50/60 Hz (AC-3) || 400 kW at 500 V AC 50/60 Hz (AC-3) || 450 kW at 660...690 V AC 50/60 Hz (AC-3) || 450 kW at 1000 V AC 50/60 Hz (AC-3) || 200 kW at 220...230 V AC 50/60 Hz (AC-3) || 100 kW at 400 V AC 50/60 Hz (AC-4)
[Icw] Rated Short-Time Withstand Current5050 A 40 °C - 10 s || 4400 A 40 °C - 30 s || 3400 A 40 °C - 1 min || 2200 A 40 °C - 3 min || 1600 A 40 °C - 10 min
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
- Net Weight
- 18.6 kg
- Protective Treatment
- TH
- Operating Altitude
- 3000 m without derating
- Depth
- 255 mm
Height304 mm
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106
Width309 mm
Permissible Ambient Air Temperature Around The Device-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1505009EN
