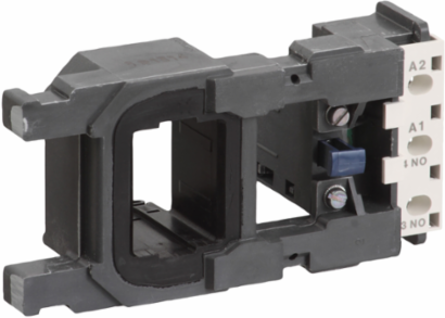

Schneider Electric LX1FG024 TeSys F Contactor Coil 24V AC 50Hz, 2400 Cycles/Hour, 0.55 kg
- MPN: LX1FG024
- PPN: SCH-LX1FG024
CAD
$657.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys F AC coil 24V 50Hz (voltage code B5), for TeSys F 3-pole and 4-pole contactors LC1 F185, F225. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out 0.35...0.55 Uc 50/60 Hz 55 °C), operational 0.85...1.1 Uc 50/60 Hz 55 °C)
- Maximum Operating Rate
- 2400 cyc/h 55 °C
Control Circuit TypeAC 50 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 20...35 ms closing, 7...15 ms opening
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.28693227533080673
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.9 kg CO2 eq., 0.9122731131826548
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Resistance
- 0.18 Ohm 20 °C
- Device Short Name
- LX1FG
- Heat Dissipation
- 18-24 W 50 Hz
- Inrush Power In Va
- 805-805 VA 50 Hz cos phi 0.3 (at 20 °C)
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- No
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 78.84
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- [Uc] Control Circuit Voltage
- 24 V AC 50 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.049774529084509175, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0003999825873412172, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]69 kg CO2 eq., 68.82266544572599
Local Publishable Date2025-07-24
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologywithout built-in suppressor module
Energy Efficiency OptimizedFalse
Inductance Of Closed Circuit0.03 H
Mechanical Durability10 Mcycles
Product Or Component Typecontactor coil
Range Of ProductTeSys F
Software Versionv6.1
Total Lifecycle Carbon Footprint70 kg CO2 eq.
Pep Verification Date2025-07-19
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential, In %95
Hold-in Power Consumption In Va55-55 VA 50 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)532.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- LC1F225, LC1F185
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 70.0720453459113
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep Verification Date2025-07-19
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
