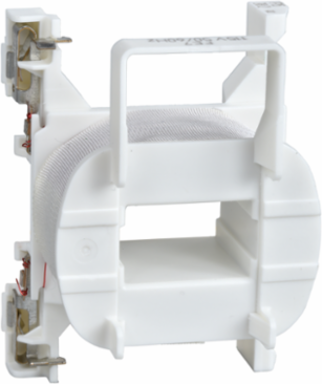

Schneider Electric LXD1LE7 TeSys Deca Contactor Coil, 208V AC, 9-38A, 3600 cyc/h
- MPN: LXD1LE7
- PPN: SCH-LXD1LE7
CAD
$117.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The TeSys Deca Contactor Coil from Schneider Electric is engineered for high-performance reliability in automation and control applications. Operating at 208V AC, this coil is capable of handling currents between 9 to 38A, accommodating a variety of operational demands. With a robust design that supports up to 3600 cycles per hour, it ensures continuous and efficient performance, making it an essential component for starters and contactors in industrial settings. Its reliability and versatility position it as a vital choice for those seeking to optimize their control systems.
Features
- Specifically designed for an 208V AC control circuit at 50/60 Hz, this replacement coil is the factory-spec component for TeSys D contactors and CAD control relays. Using an exact voltage match prevents coil hum, overheating, and premature failure, ensuring your motor starters and automation panels operate with maximum electrical efficiency and reliability.
- Engineered by Schneider Electric for seamless integration with LC1D09 through LC1D38 contactors, this LXD1LE7 coil allows for a quick, "drop-in" swap without requiring a full contactor replacement. This modular design significantly reduces maintenance labor costs and minimizes industrial downtime by allowing technicians to restore machine functionality with basic hand tools.
- Featuring optimized electromagnetic induction, this coil is rated for low-wattage sealed consumption, reducing the heat signature within high-density electrical enclosures. Lower heat dissipation protects neighboring DIN-rail components from thermal degradation, extending the overall lifespan of your control cabinet and improving system-wide stability during 24/7 operations.
Documentation & Downloads
Specifications
Additional
- Maximum Operating Rate
- 3600 cyc/h at 60 B0C
- Current Range
- 9-38 A
- Hold-in Power Consumption
- 7-7.5 VA at 50/60 Hz cos phi 0.3 (at 20 B0C)
- Average Resistance
- 430.4 Ohm at 20 B0C
- Heat Dissipation
- 2-3 W at 50/60 Hz
- Ambient Air Temperature for Operation
- -5 to 60 B0C
- Product Compatibility
- CAD, LC1DT20...DT40, LC1D09...D38
- Warranty
- 18 months
- Device Short Name
- LXD1
- Mercury Free
- Yes
- Compliance
- REACH SVHC free, EU RoHS, China RoHS, PVC free
- Circularity Profile
- ENVEOLI1501004
- Reach Regulation
- Free of Substances of Very High Concern
- China RoHS Regulation
- Pro-active declaration (out of legal scope)
Control Circuit Voltage208 V AC 50/60 Hz
Inrush Power70 VA at 50/60 Hz cos phi 0.75 (at 20 B0C)
Inductance of Closed Circuit16 H
Mechanical Durability15 Mcycles
Control Circuit TypeAC 50/60 Hz
Net Weight0.07 kg
Product Or Component Typecontactor coil
RangeTeSys
Toxic Heavy Metal FreeYes
PVC FreeYes
Environmental DisclosureENVPEP1501004
Sustainable Offer StatusGreen Premium product
RoHS Exemption InformationYes
EU RoHS DirectivePro-active compliance (out of legal scope)
