Schneider Electric LX1D6G7 TeSys Deca Contactor Coil 120V AC, 80A/95A, 32 Ohm, 4 Mcycles
- MPN: LX1D6G7
- PPN: SCH-LX1D6G7
CAD
$190.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

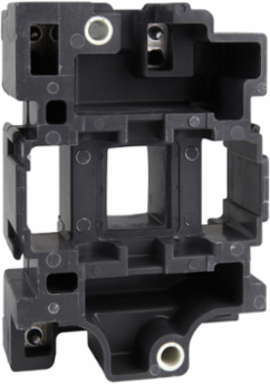

The TeSys Deca Contactor Coil, produced by Schneider Electric, is engineered for high performance in automation and control applications. Operating at 120V AC, this coil supports a remarkable load capacity of 80A, with a peak of 95A and a coil resistance of 32 Ohms, ensuring efficient energy use over an impressive lifespan of up to 4 million cycles. Ideal for use in starters and contactors, it provides reliable control solutions for various industrial environments where durability and precision are paramount.
Features
- This authentic factory replacement magnet coil is engineered precisely for Schneider Electric TeSys D and TeSys Deca 3-pole and 4-pole AC contactors, ranging from frame sizes LC1D40, LC1D50 and LC1D65 up to LC1D95. It guarantees a flawless mechanical fit and maintains original equipment specification integrity, eliminating the electrical mismatch risks associated with generic aftermarket coils.
- Built with high-grade tape-wound insulation, this heavy-duty magnetic coil boasts a mechanical durability rating of up to 4 million cycles and an operating rate of 3,600 cycles per hour. It eliminates overheating failures in demanding, continuous-duty motor control centers, automation lines, and municipal pumping systems.
- Featuring a highly efficient electrical design with a 245 VA inrush draw and a low 26 VA sealed hold-in power consumption, this coil minimizes voltage drops across smaller control power transformers. It keeps internal heat dissipation down to a manageable 6 to 10 watts, preventing heat-related degradation of adjacent DIN-rail components.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
Complementary Attributes
| Control Circuit Voltage Limits | drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C)operational: 0.85...1.1 Uc at 60 Hz (at <55 °C) |
|---|---|
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Control Circuit Type | AC 50/60 Hz |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Inrush Power In Va | 245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1924 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Resistance | 32 Ohm 20 °C |
| Device Short Name | LX1D6 |
| Heat Dissipation | 6-10 W 50/60 Hz |
| Mechanical Durability | 4 Mcycles |
| Product Or Component Type | contactor coil |
| Range Of Product | TeSys Deca |
| Sustainable Packaging | No |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Package Weight(Lbs) | 315.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Hold-in Power Consumption In Va | 26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Coil Technology | without built-in suppressor module |
| Energy Efficiency Optimized | False |
| Inductance Of Closed Circuit | 2 H |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Pep Code | ENVPEP1102005EN |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504508000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Product Compatibility | LC1D40, LC1D50, LC1D65...D95 |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1102005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1102005EN |
| Ambient Air Temperature For Operation | -5-60 °C, -5-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | contactor coil |
|---|
| Range Of Product | TeSys Deca |
|---|
ETIM
| ETIM 8 | EC001043 |
|---|
| ETIM 9 | EC001043 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
