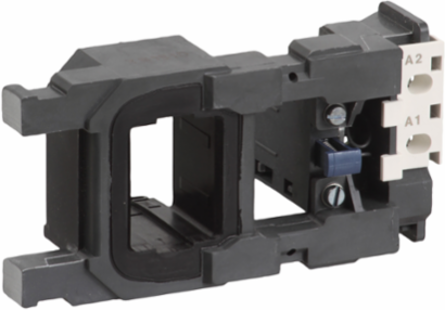

Schneider Electric LX4FG024 TeSys F Contactor Coil 24V DC, Low Consumption, 2400 Cycles/Hour
- MPN: LX4FG024
- PPN: SCH-LX4FG024
CAD
$920.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys F DC coil 24V (voltage code BD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1 F185, F225. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Average Resistance
- 0.79 Ohm inrush 20 °C || 169 Ohm holding 20 °C
- Control Circuit Type
- DC low consumption
- Product Or Component Type
- contactor coil
- Inductance Of Closed Circuit
- 14.9 H
- Operating Time
- 30...40 ms closing || 30...50 ms opening
- Device Short Name
- LX4FG
[Uc] Control Circuit Voltage24 V DC
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Maximum Operating Rate2400 cyc/h 55 °C
Product CompatibilityLC1F185 || LC1F225
Mechanical Durability10 Mcycles
Complementary
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 55 °C) || drop-out 0.15...0.2 Uc 55 °C)
- Coil Technology
- without built-in suppressor module
Hold-In Power Consumption In W5-5 W 20 °C
Inrush Power In W800-800 W 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
Net Weight0.55 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1505009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
