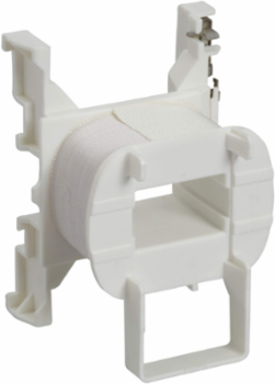

Schneider Electric LXD1X7 TeSys Deca Contactor Coil 600 V AC 9-38A, 0.07 kg, 3600 cyc/h

MPN: LXD1X7
PPN: SCH-LXD1X7

$117.98

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for efficiency in industrial automation, the TeSys Deca contactor coil from Schneider Electric operates seamlessly at 600 V AC and accommodates current ratings from 9 to 38 Amps. With a robust design optimized for high-performance applications, it can handle up to 3600 cycles per hour, ensuring reliable operation in demanding environments. This coil is an essential component for enhancing control systems, making it a valuable addition for professionals seeking durability and efficient functionality in their electrical setups.

Features

Specifically wound for 600V AC at 50/60 Hz, this replacement coil is the direct OEM solution for high-voltage industrial control circuits. Utilizing a genuine Schneider Electric LXD1X7 ensures your contactor operates within precise electrical parameters, preventing the coil burnout or "chatter" often associated with incorrect or third-party voltage ratings.
Engineered for seamless fitment within TeSys D and TeSys Deca frame sizes (LC1D09 through LC1D38 and CAD32/50), this coil allows for rapid field replacement without replacing the entire contactor assembly. This targeted compatibility reduces maintenance overhead and inventory costs while restoring your motor starters to original factory specifications.
Designed for a tool-free, snap-in fitment within the contactor housing, the LXD1X7 facilitates extremely fast repairs in the field. This ease of installation allows industrial electricians to restore power to critical control branches in minutes, significantly minimizing production downtime and labor costs during scheduled or emergency maintenance.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico, United States

Complementary Attributes

Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Maximum Operating Rate	3600 cyc/h 60 °C

Control Circuit Type	AC 50/60 Hz

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Inrush Power In Va	70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Local Publishable Date	2026-06-27
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1501004
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	3810 Ohm 20 °C
Device Short Name	LXD1
Inductance Of Closed Circuit	136 H
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Pep Code	ENVPEP1501004EN
Hold-in Power Consumption In Va	7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)	79.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Traceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Heat Dissipation	2-3 W 50/60 Hz
Mechanical Durability	15 Mcycles
Product Or Component Type	contactor coil
Range Of Product	TeSys Deca
Sustainable Packaging	Yes
[Uc] Control Circuit Voltage	600 V AC 50/60 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504508000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product Compatibility	LC1D09...D38, CAD, LC1DT20...DT40
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI1501004
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation	-5-60 °C, -5-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1501004EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1501004EN
