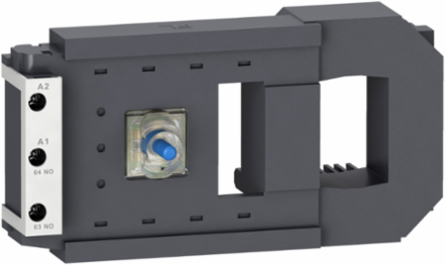

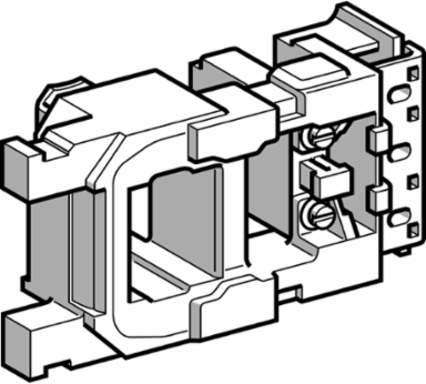

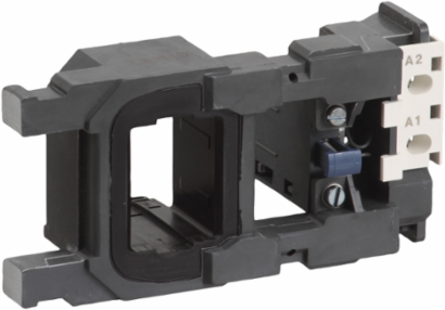

Schneider Electric LX9FG127 TeSys F Contactor Coil 120-127 V AC 40-400 Hz Low Consumption
- MPN: LX9FG127
- PPN: SCH-LX9FG127
CAD
$657.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys F AC coil 120/127V 40-400Hz (voltage code G7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F185, FG185, F225. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Features
- This replacement contactor coil is specifically engineered for flawless drop-in integration with Schneider Electric TeSys F 3-pole and 4-pole contactors, specifically the LC1F185, FG185, and LC1F225 series. It serves as an exact factory-spec fitment, allowing industrial facilities to rapidly overhaul their large-frame motor control starters without needing to completely replace the entire expensive contactor block.
- Engineered for heavy industrial control networks, this AC coil operates efficiently at a nominal control circuit voltage of 120V to 127V AC within a broad frequency range of 40 to 400 Hz. This ensures absolute electrical stability and reliable armature actuation across common plant voltages, meaning you can maintain tight control circuit regulation without worrying about voltage variations.
- Designed as a low sealed consumption component, this specific contactor coil draws an ultra-low hold-in power of just 8.9 to 10.9 VA while generating a mere 8 to 9.8 watts of heat dissipation. By significantly reducing the thermal load inside tightly sealed electrical enclosures, it eliminates the need for aggressive active cooling and protects adjacent sensitive control components like PLCs from premature heat-induced degradation.
- Built with an operational threshold threshold of 0.85 to 1.1 Uc, this coil offers high tolerance to sudden line voltage drops and heavy industrial inrush currents. It mitigates the risk of contact chattering or accidental dropouts during large motor startups, ensuring consistent operational continuity and eliminating costly unscheduled machine downtime.
- This heavy-duty coil boasts a mechanical durability rated for up to 10 million cycles and supports aggressive operating rates of up to 2,400 cycles per hour in ambient temperatures up to 55°C (131°F). This exceptional thermal and mechanical endurance makes it ideal for continuous-duty applications like material handling, pumping, and automated manufacturing systems.
- Fully Green Premium compliant, this component adheres strictly to environmental certifications including RoHS and REACh, making it perfect for facilities prioritizing sustainable infrastructure. As an authentic Schneider Electric OEM replacement part, it provides a safe, certified, and cost-effective maintenance path that restores full system compliance without altering the original panel safety certifications.
Documentation & Downloads
Specifications
Key Specifications
- Average Resistance
- 13 Ohm inrush 20 °C || 520 Ohm holding 20 °C
- Control Circuit Type
- AC 40...400 Hz low consumption
- Product Or Component Type
- specific contactor coil
- Inductance Of Closed Circuit
- 1.85 H
- Operating Time
- 130 ms opening || 35 ms closing
- Device Short Name
- LX9FG
[Uc] Control Circuit Voltage120...127 V AC 40...400 Hz
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Maximum Operating Rate2400 cyc/h 55 °C
Product CompatibilityLC1F185 || LC1F225
Mechanical Durability10 Mcycles
Complementary
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 55 °C) || drop-out 0.2...0.55 Uc 55 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 8-9.8 W
Inrush Power In Va950-1180 VA 40...400 Hz (at 20 °C)
Hold-In Power Consumption In Va8.9-10.9 VA 40...400 Hz (at 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
Net Weight0.55 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
Circularity ProfileENVEOLI1505009EN
