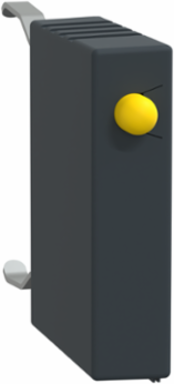

Schneider Electric LA4KE1UG TeSys K Suppressor Module, Varistor 130-250V AC/DC, Clip-On Mounting, LED Indicator
Schneider Electric LA4KE1UG TeSys K Suppressor Module, Varistor 130-250V AC/DC, Clip-On Mounting, LED Indicator
- MPN: LA4KE1UG
- PPN: SCH-LA4KE1UG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$45.57/ EA
Description
TeSys K suppressor module, for contactors LC.K, LP.K, CA.K. To be used with 130-250V AC or DC control circuit voltage, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- UL || CSA || CE || UKCA
- Standards
- UL 60947-5-1 || CSA C22.2 No 60947-5-1 || EN/IEC 60947-5-1
- Ambient Air Temperature For Storage
- -50-80 °C
Ambient Air Temperature For Operation-25-50 °C
Ip Degree Of ProtectionIP2XIEC 60529
Protective TreatmentTCIEC 60068 || TCDIN 50016
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111253EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- [Uc] Control Circuit Voltage
- 130...250 V AC || 130...250 V DC
- Net Weight
- 0.01 kg
- Maximum Peak Voltage
- 2 Uc
- Local Signalling
- LED
- Width
- 6 mm
- Suppressor Technology
- varistor (peak limiting)
Height26 mm
Mounting Locationfront side
Mounting Modeclip-on
Quantity Per Setset of 5
Depth22 mm
Specifications
- Product Or Component Type
- suppressor module
- Product Compatibility
- LC1K || LP1K || LP4K || CA2K || CA3K
RangeTeSys
Device Short NameLA4K
