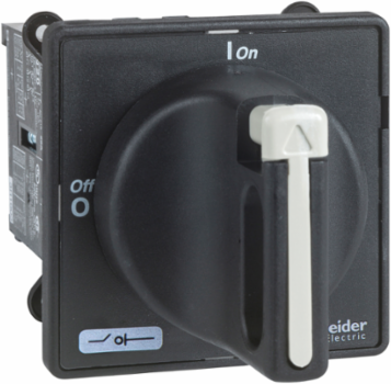

Schneider Electric VBDN20 TeSys Vario Switch Disconnector, 20A, 3 Poles, IP65, 60x60mm

  • MPN: VBDN20
  • PPN: SCH-VBDN20
  • UNSPSC: 39122233

CAD

$102.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

VBDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. For door mounting with a single fixing, it provides a black handle with IP65 protection. VBDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body and a padlockable black & grey operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body VZ20 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).

Features

  • Convenient to use with 3 options of padlockable operating handle
  • Ensure high protection degree under harsh environment
  • Multi standards certified
  • Environmental compliant

Documentation & Downloads

Specifications

Key Specifications

Country of OriginCzechia
Weight177 g

Complementary Attributes

Rated Operational Power In W4 kW 400...415 V AC-3), 5.5 kW 500 V AC-3), 5.5 kW 690 V AC-3), 4 kW 230...240 V AC-23A)5.5 kW 400...415 V AC-23A)7.5 kW 500 V AC-23A)11 kW 690 V AC-23A)3 kW 230...240 V AC-3)
Icm Rated Short Circuit Making Capacity0.5 kA 400 V at Ipeak
Ie Rated Operational Current11 A AC-23)400 V
Uimp Rated Impulse Withstand Voltage6 kV
Rated Conditional Short Circuit Current6 kA 400 V 20 A aM, 6 kA 400 V 20 A gG
Icw Rated Short Time Withstand Current140 A 400 V 1 s
Ue Rated Operational Voltage690 V AC 50/60 Hz

Important Information Attributes

Persona Type IdsEU, LC, OM, OM8, PB
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Device Compositionhandle, switch
Mounting Supporthandle door, switch door
Connections Terminalspower circuit screw clamp terminals 4-4 mm² flexible - with cable end, power circuit screw clamp terminals 4-4 mm² solid
Carbon Footprint Of The Distribution Phase A40.020903290442569368, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1 kg CO2 eq., 0.053637229919857164
Carbon Footprint Of The Use Phase B2 B3 B4 B65 kg CO2 eq., 4.986699999999999
Local Publishable Date2026-06-27
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Codemain switch disconnector
Control Typerotary handle
Electrical Durability30000 cycles DC-1...550000 cycles AC-21
Fixing Modehole 22.5 mm handle
Marking0 - 1
Mechanical Robustnessshocks 11 ms 15 gn) IEC 60068-2-27vibrations 10...150 Hz 1 gn) IEC 60068-2-6
Performance Levelstandard
Product NameTeSys Mini-VARIO
Protective TreatmentTC
ReturnabilityYes
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
Suitability For Isolationyes
Tightening Torquepower circuit 0.7-0.7 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Colorblack
Database Version2022-01
Height Nominal60 mm
Nbr. Of Units In Pkg.1
Ith Conventional Free Air Thermal Current20 A
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y20
Recyclability Potential In %42
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A
Network TypeDC, AC
Certificate AgencyCSA, UL, CCC, GL, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C40.43582277256668406, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 1.0902765254370028
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Base Dimension60 x 60 mm
Contacts Type And Composition3 NO
Device Short NameVBDN
Fire Resistance960 °C IEC 60695-2-1
Intermittent Duty Class30
Mechanical Durability50000 cycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeswitch disconnector
RangeTeSys
Rotary Handle Mounting Styledirect
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint7 kg CO2 eq.
Handle Colorblack
Thermal Current 320 A
Data Sourceextrapolated product
Width Nominal60 mm
Customs Code8536509040
Ithe Conventional Enclosed Thermal Current16 A
Functional Unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh74.6352

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2211017EN
Ip Degree Of ProtectionIP65
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211017EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint6.587339818366113
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Typeswitch disconnector

ETIM

ETIM 8EC000216
ETIM 10EC000216
ETIM 9EC000216

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
