Schneider Electric

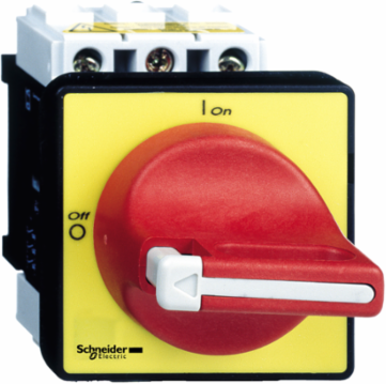

Schneider Electric VCF0 TeSys Vario 3 Pole Switch Disconnector, 25A, IP65 for Door Mounting

  • MPN: VCF0
  • PPN: SCH-VCF0
  • UNSPSC: 39122233

CAD

$131.89

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

VCF0 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 7.5kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF0 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 7.5kW@400V AC-23. It consists of a V0 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V0 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ0), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).

Features

  • Multi usage for main and emergency stop switch disconner
  • Convenient to use with 3 options of padlockable operating handle
  • Ensure high protection degree under harsh environment
  • Multi standards certified

Documentation & Downloads

Specifications

Key Specifications

Country of OriginCzechia
Weight250 g

Complementary Attributes

Rated Operational Power In W5.5 kW 230...240 V AC-23A), 7.5 kW 400...415 V AC-23A), 11 kW 500 V AC-23A)11 kW 690 V AC-3), 15 kW 690 V AC-23A)4 kW 230...240 V AC-3)5.5 kW 400...415 V AC-3), 7.5 kW 500 V AC-3)
Icm Rated Short Circuit Making Capacity1 kA 400 V at Ipeak
Ie Rated Operational Current14.5 A AC-23 Ue: 400 V
Uimp Rated Impulse Withstand Voltage8 kV
Rated Conditional Short Circuit Current10 kA 400 V 25 A aM, 10 kA 400 V 25 A gG
Icw Rated Short Time Withstand Current300 A 400 V 1 s
Ue Rated Operational Voltage690 V AC 50/60 Hz

Important Information Attributes

Persona Type IdsEU, LC, OM, OM8, PB
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Device Compositionswitch, handle
Mounting Supporthandle door, switch door
Connections Terminalspower circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end
Carbon Footprint Of The Distribution Phase A40.04871669193150384, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.02191936744141827
Carbon Footprint Of The Use Phase B2 B3 B4 B629 kg CO2 eq., 28.971796700100345
Local Publishable Date2026-06-27
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Base Dimension60 x 60 mm
Contacts Type And Composition3 NO
Device Short NameVCF
Fire Resistance960 °C IEC 60695-2-1
Intermittent Duty Class30
Mechanical Durability100000 cycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeemergency stop switch disconnector
RangeTeSys
Rotary Handle Mounting Styledirect
Software Versionv6.1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint31 kg CO2 eq.
Handle Colorred
Thermal Current 325 A
Data Sourceextrapolated product
Width Nominal60 mm
Customs Code8536509025
Ithe Conventional Enclosed Thermal Current20 A
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y20
Recyclability Potential In %57
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity250 A 400 V AC-21A, 250 A 400 V AC-22A, 250 A 400 V AC-23A
Network TypeAC, DC
Certificate AgencyCSA, CCC, GL, UL, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C40.6629610756790507, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A32 kg CO2 eq., 1.579208650841355
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Codemain switch disconnector
Control Typerotary handle
Electrical Durability100000 cycles AC-2130000 cycles DC-1...5
Fixing Modeby 4 screws handle
Marking0 - 1
Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
Performance Levelhigh performance
Product NameTeSys VARIO
Protective TreatmentTC
ReturnabilityYes
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
Suitability For Isolationyes
Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Coloryellow
Database Version2023-02
Height Nominal74 mm
Nbr. Of Units In Pkg.1
Ith Conventional Free Air Thermal Current25 A
Halogen Free StatusHalogen free product
Functional Unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh433.62

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ip Degree Of ProtectionIP20 conforming to IEC 60529, IP65
Halogene PerformanceHalogen free product
Toxic Heavy Metal FreeYes
Carbon Footprint31.284602485993673
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2211006EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Typeemergency stop switch disconnector

ETIM

ETIM 8EC000216
ETIM 10EC000216
ETIM 9EC000216

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
TeSys Vario 3 Pole Switch Disconnector, 25A, IP65 for Door Mounting
