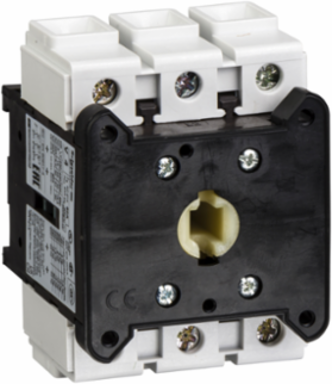

Schneider Electric V3 TeSys Vario Switch Body 3 Poles 63A 690V, IP20, Green Premium Compliance
- MPN: V3
- PPN: SCH-V3
CAD
$136.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
V3 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 63A 690V, it is used in motor applications up to 22kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Germany, United States
Depth65 mm
Complementary Attributes
- Rated Operational Power In W
- 18.5 kW 690 V AC-3), 22 kW 400...415 V AC-23A), 11 kW 230...240 V AC-3), 22 kW 500 V AC-3), 22 kW 690 V AC-23A), 30 kW 500 V AC-23A), 18.5 kW 400...415 V AC-3), 15 kW 230...240 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 30000 cycles AC-21, 30000 cycles DC-1...5
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6, shocks 11 ms 30 Gn) IEC 60068-2-27
- Network Type
- DC, AC
- Connections - Terminals
- power circuit screw clamp terminals 16-16 mm² flexible - with cable end, power circuit screw clamp terminals 25-25 mm² solid
- Carbon Footprint Of The Distribution Phase [A4]
- 0.09743338386300768, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.04383873488283654
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 29 kg CO2 eq., 28.971796700100345
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- V
- Device Short Name
- V
- Intermittent Duty Class
- 30
- Network Frequency
- 50/60 Hz
- Performance Level
- high performance
- Product Name
- TeSys VARIO
- Protective Treatment
- TC
- Returnability
- Yes
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2211006EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Czech Republic, CZ
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential, In %
- 57
- Width Nominal
- 60 mm
- [Icw] Rated Short-time Withstand Current
- 756 A 400 V 1 s
- [Ith] Conventional Free Air Thermal Current
- 63 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 302.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity630 A 400 V AC-21A, 630 A 400 V AC-22A, 630 A 400 V AC-23A
Mounting Supportplate, symmetrical rail
Certificate AgencyUL, CSA, GL, UKCA
Rated Conditional Short-circuit Current10 kA 400 V 63 A aM, 10 kA 400 V 63 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.3259221513581014, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.15841730168271
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition3 NO
Fire Resistance960 °C IEC 60695-2-1
Mechanical Durability30000 cycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeswitch body
RangeTeSys
Software Versionv6.1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint34 kg CO2 eq.
Thermal Current 363 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh433.62
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal83 mm
[Icm] Rated Short-circuit Making Capacity2.1 kA 400 V at Ipeak
[Ie] Rated Operational Current41.5 A AC-23 Ue: 400 V
[Ithe] Conventional Enclosed Thermal Current50 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006EN
- Halogen Content Performance
- Halogen free product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Halogene PerformanceHalogen free product
Toxic Heavy Metal FreeYes
Carbon Footprint33.597408271887
Eu Rohs DirectiveCompliant
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
