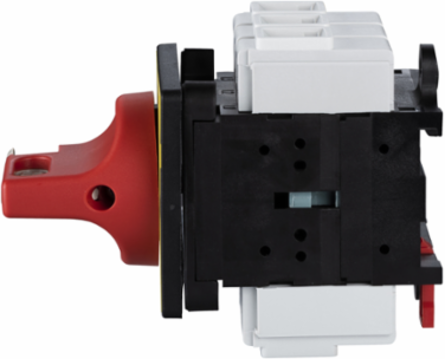

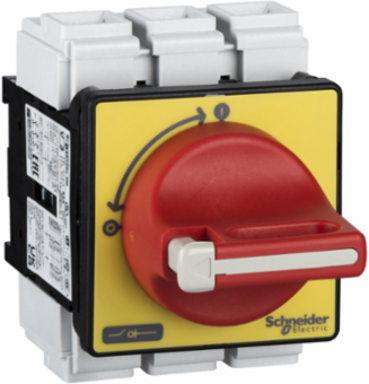

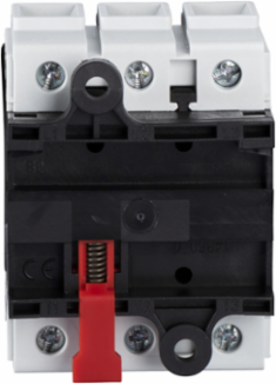

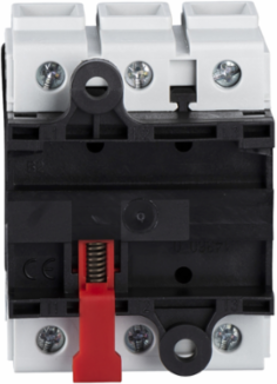

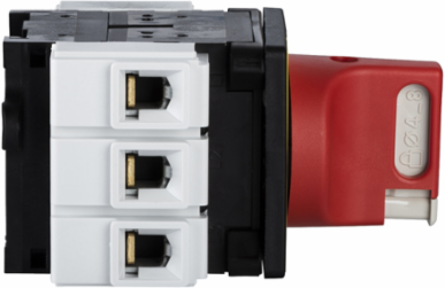

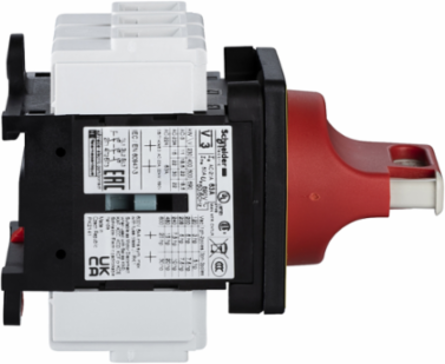

Schneider Electric VCF3 TeSys Vario 63A Door Mount Emergency Stop Switch Disconnector, 3 Poles, IP65

MPN: VCF3
PPN: SCH-VCF3
UNSPSC: 39122233

$204.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

VCF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 22kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 22kW@400V AC-23. It consists of a V3 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V3 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).

Features

Multi usage for main and emergency stop switch disconner
Convenient to use with 3 options of padlockable operating handle
Ensure high protection degree under harsh environment
Multi standards certified

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia

Weight	560 g

Complementary Attributes

Rated Operational Power In W	18.5 kW 690 V AC-3)22 kW 400...415 V AC-23A), 11 kW 230...240 V AC-3)22 kW 500 V AC-3)22 kW 690 V AC-23A), 30 kW 500 V AC-23A)18.5 kW 400...415 V AC-3), 15 kW 230...240 V AC-23A)
Icm Rated Short Circuit Making Capacity	2.1 kA 400 V at Ipeak
Ie Rated Operational Current	41.5 A AC-23 Ue: 400 V
Uimp Rated Impulse Withstand Voltage	8 kV

Rated Conditional Short Circuit Current	10 kA 400 V 63 A aM, 10 kA 400 V 63 A gG
Icw Rated Short Time Withstand Current	756 A 400 V 1 s
Ue Rated Operational Voltage	690 V AC 50/60 Hz

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	switch, handle
Making Capacity	630 A 400 V AC-21A, 630 A 400 V AC-22A, 630 A 400 V AC-23A
Network Type	DC, AC
Certificate Agency	GL, CCC, CSA, UL, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C4	1.4850328095210736, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	4 kg CO2 eq., 3.5374273778846352
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	main switch disconnector
Control Type	rotary handle
Fire Resistance	960 °C IEC 60695-2-1
Intermittent Duty Class	30
Mechanical Durability	30000 cycles
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	emergency stop switch disconnector
Range	TeSys
Rotary Handle Mounting Style	direct
Software Version	v6.1
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	34 kg CO2 eq.
Handle Color	red
Thermal Current 3	63 A
Data Source	extrapolated product
Width Nominal	60 mm
Customs Code	8536509025
Ithe Conventional Enclosed Thermal Current	50 A
Functional Unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	433.62

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Electrical Durability	30000 cycles AC-21, 30000 cycles DC-1...5
Mounting Support	handle door, switch door
Connections Terminals	power circuit screw clamp terminals 25-25 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - with cable end
Carbon Footprint Of The Distribution Phase A4	0.1091253899265686, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.04909938306877692
Carbon Footprint Of The Use Phase B2 B3 B4 B6	29 kg CO2 eq., 28.971796700100345
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV switch - disconnector
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1936
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Base Dimension	60 x 60 mm
Contacts Type And Composition	3 NO
Device Short Name	VCF
Fixing Mode	by 4 screws handle
Marking	0 - 1
Mechanical Robustness	vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
Performance Level	high performance
Product Name	TeSys VARIO
Protective Treatment	TC
Returnability	Yes
Rotary Handle Padlocking	1 to 3 padlocks 4-8 mm
Suitability For Isolation	yes
Tightening Torque	power circuit 4-4 N.m screw clamp terminals
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Color	yellow
Database Version	2023-02
Height Nominal	83 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	63 A
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	57

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ip Degree Of Protection	IP20 conforming to IEC 60529, IP65
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211006EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-20-50 °C, -20-50 °C
Take Back	No
Toxic Heavy Metal Free	Yes
Carbon Footprint	34.1524816605014
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2211006EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
