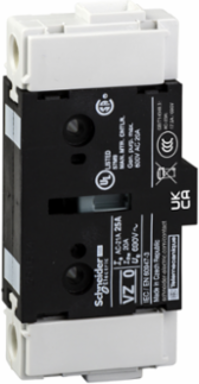

Schneider Electric VZ02 TeSys Vario Additional Pole 12A 690V for V02 Switch-Disconnectors
- MPN: VZ02
- PPN: SCH-VZ02
CAD
$23.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VZ02 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A 690V, to be used with V02 switch bodies. A maximum of 3 additional VZ02 modules can be attached to the switch body. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth35 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-21, 30000 cycles DC-1...5
- Mounting Location
- left, right
- Certificate Agency
- CSA, UL, GL, UKCA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.007846013513513512, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02661486486486486, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0.5 kg CO2 eq., 0.4993700000000001
- Local Publishable Date
- 2026-01-07
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 1 NO
- Fire Resistance
- 960 °C IEC 60695-2-1
- Network Frequency
- 50/60 Hz
- Performance Level
- high performance
- Product Or Component Type
- additional pole
- Range
- TeSys
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Pep Code
- ENVPEP2211001EN
- Pep Verification Date
- 2025-06-18
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 74 mm
- [Ith] Conventional Free Air Thermal Current
- 12 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 47.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6, shocks 11 ms 30 Gn) IEC 60068-2-27
Network TypeDC, AC
Connections - Terminalspower circuit screw clamp terminals 6-6 mm² flexible - with cable end, power circuit screw clamp terminals 10-10 mm² solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.13483783783783782
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.341402027027027
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codemain pole module
Device Short NameVZ
Mechanical Durability100000 cycles
Number Of Poles1P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityNo
Suitability For Isolationyes
Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 12A ensuring isolation characterized by rated voltage 8KV. This function is provided for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %35
Width Nominal16 mm
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 1.0100707432432432
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-18
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Halogene PerformanceHalogen free product
Mercury FreeYes
Environmental DisclosureENVPEP2211001EN
Halogen Content PerformanceHalogen free product
Packaging Made With Recycled CardboardYes
Product CompatibilityV02
Pep CodeENVPEP2211001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- additional pole
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
