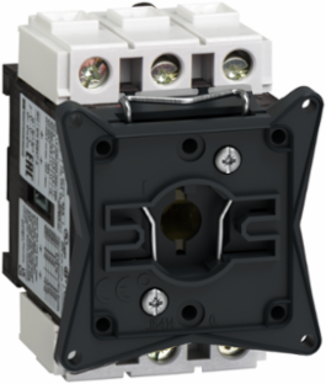

Schneider Electric V02 TeSys Vario Switch Body, 3 Poles, 12A, 690V AC, DIN-Rail Mount, IP20
Schneider Electric V02 TeSys Vario Switch Body, 3 Poles, 12A, 690V AC, DIN-Rail Mount, IP20
- MPN: V02
- PPN: SCH-V02
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$46.48/ EA
Description
TeSys Vario switch body, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- UL || CSA || GL || UKCA || CCC
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Fire Resistance
- 960 °C IEC 60695-2-1
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529
Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
Complementary
- Network Frequency
- 50/60 Hz
- Height
- 74 mm
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Network Type
- AC || DC
- Net Weight
- 0.2 kg
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- [Icm] Rated Short-Circuit Making Capacity
- 1 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- Mechanical Durability
- 100000 cycles
- Width
- 55 mm
- Depth
- 60 mm
- Rated Operational Power In W
- 3 kW 400...415 V AC-3) || 4 kW 500 V AC-3) || 1.5 kW 230...240 V AC-3) || 5.5 kW 500 V AC-23A) || 5.5 kW 690 V AC-3) || 7.5 kW 690 V AC-23A) || 3 kW 230...240 V AC-23A) || 4 kW 400...415 V AC-23A)
- [Icw] Rated Short-Time Withstand Current
- 300 A 400 V 1 s
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Intermittent Duty Class30
Mounting Supportplate || symmetrical rail
[Ithe] Conventional Enclosed Thermal Current10 A
Performance Levelhigh performance
Making Capacity120 A 400 V AC-21A || 120 A 400 V AC-22A || 120 A 400 V AC-23A
Contacts Type And Composition3 NO
Electrical Durability100000 cycles AC-21 || 30000 cycles DC-1 || 30000 cycles DC-2 || 30000 cycles DC-3 || 30000 cycles DC-4 || 30000 cycles DC-5
[Ie] Rated Operational Current8.1 A AC-23 Ue: 400 V
Poles Description3P
Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals
Breaking Capacity120 A 400 V AC-21A) || 120 A 400 V AC-22A) || 120 A 400 V AC-23A)
Rated Conditional Short-Circuit Current10 kA 400 V 12 A aM || 10 kA 400 V 12 A gG
Specifications
- Product Or Component Type
- switch body
- Range
- TeSys
Product NameTeSys VARIO
Device Short NameV
Downloads
