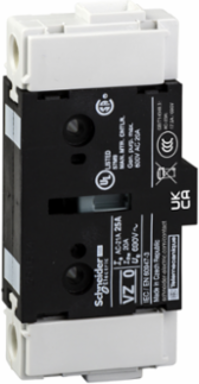

Schneider Electric VZ01 TeSys Vario Additional Pole 20A 690V, 1P, IP20 Protection
- MPN: VZ01
- PPN: SCH-VZ01
CAD
$24.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VZ01 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types V01. VZ01 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types V01. A maximum of 3 VZ01 main pole modules can be attached to a switch body V01. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Add-on main pole module for Vario switch disconnector assemblies. Same AC and DC ratings as V01 switch bodies. Other add-on modules available for V01 switch bodies , neutral (VZ11), earthing (VZ14), auxiliary contacts (VZ7, VZ20).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
| Depth | 35 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Location | left, right |
| Certificate Agency | GL, CSA, UL, UKCA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.13483783783783782 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.341402027027027 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | main pole module |
| Device Short Name | VZ |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Number Of Poles | 1P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | No |
| Suitability For Isolation | yes |
| Tightening Torque | power circuit 2.1-2.1 N.m screw clamp terminals |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 12A ensuring isolation characterized by rated voltage 8KV. This function is provided for 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CZ |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 35 |
| Width Nominal | 16 mm |
| [Ithe] Conventional Enclosed Thermal Current | 16 A |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 46.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Network Type | DC, AC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.007846013513513512, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.02661486486486486, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.5 kg CO2 eq., 0.4993700000000001 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 1 NO |
| Electrical Durability | 100000 cycles AC-2130000 cycles DC-1...5 |
| Mechanical Durability | 100000 cycles |
| Network Frequency | 50/60 Hz |
| Performance Level | high performance |
| Product Or Component Type | additional pole |
| Range | TeSys |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Pep Code | ENVPEP2211001EN |
| Pep Verification Date | 2025-06-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 74 mm |
| [Ith] Conventional Free Air Thermal Current | 20 A |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Connections - Terminals | power circuit screw clamp terminals 6-6 mm² flexible - with cable endpower circuit screw clamp terminals 10-10 mm² solid |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908140 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 1.0100707432432432 |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -20-50 °C, -20-50 °C |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211001EN |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | V01 |
| Pep Code | ENVPEP2211001EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | additional pole |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
