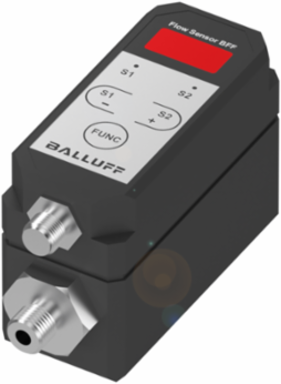

Balluff BFF TX006-DA004-D00A2C-S4 Thermal flow controller BFF TX006-DA004-D00A2C-S4
- MPN: BFF TX006-DA004-D00A2C-S4
- PPN: BAL-BFF000A
CAD
$1504.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Flow sensors let you measure and monitor the flow of process media in a wide range of applications. For example the lubricant flow or reliable circulation of cooling water. Now you can detect a pump failure early and prevent an unplanned machine or even system stop.This is how flow sensors as well as pressure or temperature sensors contribute to process security.
Documentation & Downloads
Specifications
Key Specifications
- Working range
- 0.1-2 l/min water
- Switching output
- 2x PNP NO/NC
- Inside diameter
- 6 mm
- Process connection material
- Stainless steel (1.4571)
- Media temperature
- 0-60 °C
- Ambient temperature
- 0-60 °C
- Approval/Conformity
- CE, WEEE
Operating voltage Ub22-26 VDC
ConnectionConnector, M12x1-Male, 4-pin
Process connectionG 1/4" outer
Housing materialPBT
Pressure rating max.20 bar
IP ratingIP54
