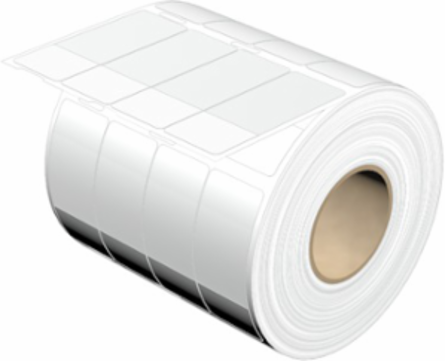

Weidmuller 1109130000 THM WO 24.5/62 WS
- MPN: 1109130000
- PPN: WDM-1109130000
CAD
$490.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
THM, Conductor and cable markers, 6.1 - 13.7 mm, 24.5 x 62 mm, white
Documentation & Downloads
Specifications
General Data
- Adhesive
- Polyacrylate adhesive
- Colour
- white
- Material
- Polyester film
- Number per roll
- 2,500
- Size of labelling field
- 19.05 x 24.5 mm
- UL 94 flammability rating
- V-0
- Width
- 62 mm
Approval acc. to UL 969Yes
HalogenNo
Material colour according to resistance code9
Operating temperature range-40...150 °C
Type of printingneutral
VersionSelf-adhesive
compatible printer2430920000 2448870000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 62 mm
- Height
- 24.5 mm
- Depth
- 0.025 mm
- Net weight
- 557 g
Width (inches)2.441 inch
Height (inches)0.965 inch
Depth (inches)0.001 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 6.1 - 13.7 mm
- Conductor O.D., min.
- 6.1 mm
- Conductor cross-section, min.
- 0.75 mm²
Conductor O.D., max.13.7 mm
Conductor cross-section, max.150 mm²
HalogenNo
