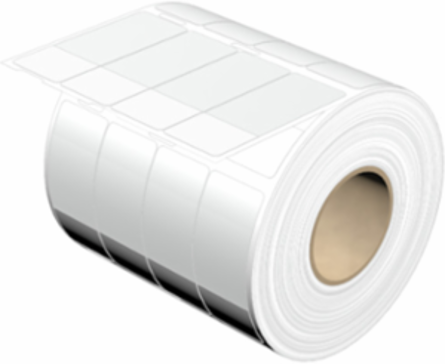

Weidmuller 1003420000 THM WO T 24.5/62 WS
- MPN: 1003420000
- PPN: WDM-1003420000
CAD
$943.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
THM, Conductor and cable markers, 6.1 - 13.7 mm, 24.5 x 62 mm, white
Documentation & Downloads
Specifications
General Data
| Adhesive | Polyacrylate adhesive |
|---|---|
| Colour | white |
| Material | Tedlar polyvinyl fluoride film® |
| Number per roll | 2,500 |
| Size of labelling field | 25 x 24.5 mm |
| UL 94 flammability rating | V-0 |
| Width | 62 mm |
| Approval acc. to UL 969 | No |
|---|---|
| Halogen | Yes |
| Material colour according to resistance code | 9 |
| Operating temperature range | -40...107 °C |
| Type of printing | neutral |
| Version | Self-adhesive |
| compatible printer | 2430920000 2448870000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 62 mm |
|---|---|
| Height | 24.5 mm |
| Depth | 0.05 mm |
| Net weight | 603 g |
| Width (inches) | 2.441 inch |
|---|---|
| Height (inches) | 0.965 inch |
| Depth (inches) | 0.002 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
| UNSPSC | 44-12-17-08 |
Conductor And Cable Markers
| Conductor O.D. | 6.1 - 13.7 mm |
|---|---|
| Conductor O.D., min. | 6.1 mm |
| Conductor cross-section, min. | 0.75 mm² |
| Conductor O.D., max. | 13.7 mm |
|---|---|
| Conductor cross-section, max. | 95 mm² |
| Halogen | Yes |
