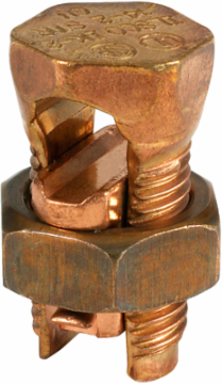

ILSCO IK3-2 Three Wire Copper Split Bolt, Conductor Range for Equal Main & Tap 2-6 Sol, UL, CSA
- MPN: IK3-2
- UPC: 783669813609
- PPN: ILC-IK3-2
CAD
$16.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Three Wire Copper Split Bolt, Conductor Range for Equal Main & Tap 2-6 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.105 lbs
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 11/16, 13/16
- Height BX (IN)
- 2.25
- Width BX (IN)
- 4.375
Drive Type MainExternal Hex
Weight BX (LB)1.109
Wire Diameter Range Primary (IN)0.162 - 0.258
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed, UL 467 Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE12822
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors3
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range for Equal Run & Tap Str
- 2 Str - 5 Str
- Conductor Range for Minimum Tap with Maximum Run
- 14 Str
- Max Conductor Copperweld - Type A
- 3A
Conductor Range for Equal Run & Tap Sol3 Sol - 6 Sol
Max Conductor Copperweld - Str3 No. 7
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedNo
UPC Code78366981360
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
