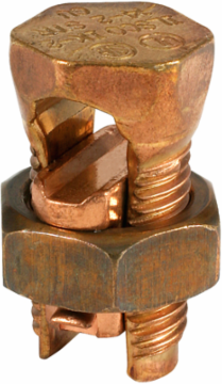

ILSCO IK3-3 Three Wire Copper Split Bolt, Conductor Range for Equal Main & Tap 2 Sol - 6 Sol, UL, CSA
- MPN: IK3-3
- UPC: 783669813593
- PPN: ILC-IK3-3
CAD
$30.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Three Wire Copper Split Bolt, Conductor Range for Equal Main & Tap 2 Sol - 6 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.104 lbs
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 19/32, 25/32
- Height BX (IN)
- 2.25
- Width BX (IN)
- 4.375
Drive Type MainExternal Hex
Weight BX (LB)1.099
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 467 Listed
UL Control Number460C
UL File NumberE12822
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors3
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range for Equal Run & Tap Str
- 2 Str - 5 Str
- Conductor Range for Minimum Tap with Maximum Run
- 14 Sol
Conductor Range for Equal Run & Tap Sol2 Sol - 6 Sol
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedNo
UPC Code78366981359
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
