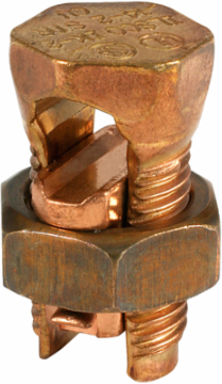

ILSCO IK3-6 Three Wire Copper Split Bolt, Conductor Range for Equal Main & Tap 6 Sol - 10 Sol, UL, CSA
- MPN: IK3-6
- UPC: 783669813555
- PPN: ILC-IK3-6
CAD
$14.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Three Wire Copper Split Bolt, Conductor Range for Equal Main & Tap 6 Sol - 10 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.055 lbs
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 1/2, 5/8
- Height BX (IN)
- 2
- Width BX (IN)
- 6.1875
Drive Type MainExternal Hex
Weight BX (LB)5.647
Wire Diameter Range Primary (IN)0.102 - 0.162
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE12822
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors3
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range for Equal Run & Tap Str
- 6 Str - 8 Str
- Conductor Range for Minimum Tap with Maximum Run
- 16 Sol
Conductor Range for Equal Run & Tap Sol6 Sol - 10 Sol
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366981355
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
