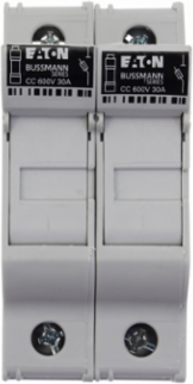

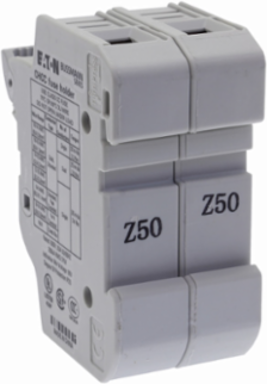

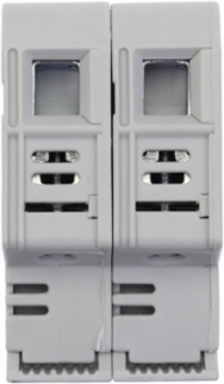

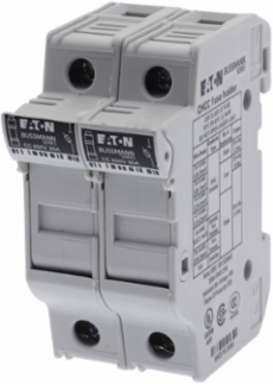

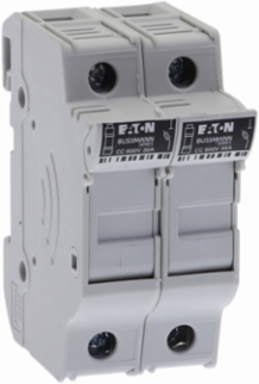

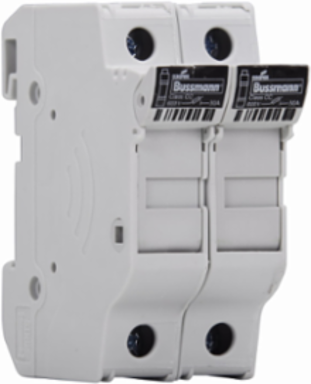

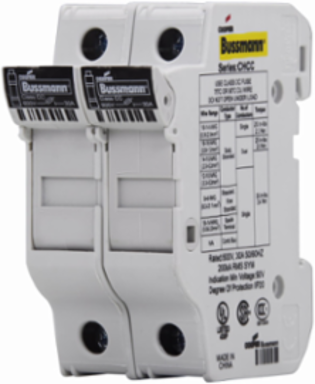

Bussmann CHCC2DU Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC

Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC
  • MPN: CHCC2DU
  • UPC: 051712362672
  • PPN: BUS-CHCC2DU

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$56.57/ EA

Description

Modular Fuse Holder, 48 Vdc, 30A, Two-Pole, 2.91 Inch Height, Class CC

Features

  • The Bussmann CHCC2DU is a 2-pole, 30-Amp Class CC fuse holder designed to provide simultaneous overcurrent protection for two lines. This dual-pole architecture is perfect for 240V or 480V single-phase branch circuits and control transformers, allowing you to save significant "real estate" on the DIN rail compared to using two separate single-pole holders.
  • As a dedicated Class CC holder, this unit features a specialized physical rejection base that only accepts the "rejection tip" of a Class CC fuse. This safety mechanism prevents the accidental installation of standard midget fuses, ensuring your circuit maintains its high-interrupting rating and meets strict Canadian Electrical Code (CEC) safety requirements.

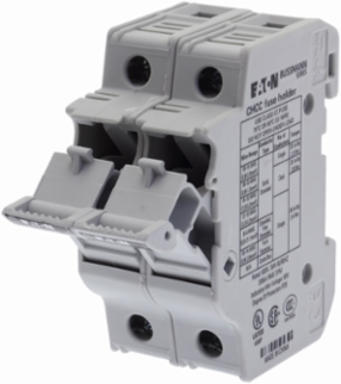

  • Engineered for maximum operator safety, the CHCC2DU is IP20 finger-safe, protecting technicians from accidental contact with live terminals during maintenance. The pull-out fuse drawer allows for isolated, tool-free fuse replacement, significantly reducing the risk of accidental shock in busy Canadian industrial control environments
  • Designed for rapid integration, this holder snaps directly onto any standard 35mm DIN rail. Its modular, compact design is ideal for high-density control panels where space is a premium, providing a clean, organized look in everything from HVAC mechanical systems to large-scale manufacturing assembly lines.

Specifications

Voltage
48 Vdc
Number of Poles
Two-pole
Class
Class CC
Height
2.91 in
Weight
0.22 lb
Amperage30A
Operating Temperature Range-20b0C to 120b0C
Length1.38 in
Width3.28 in
ComplianceRoHS Compliant
