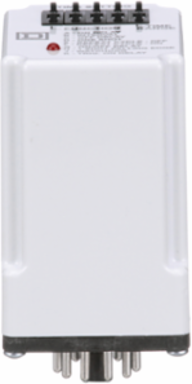

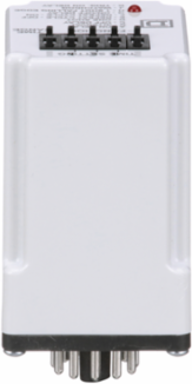

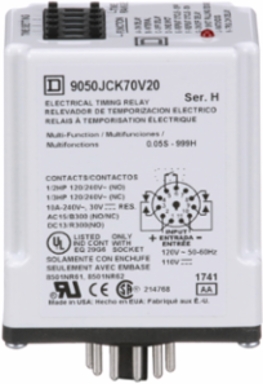

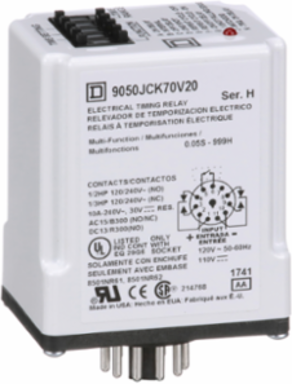

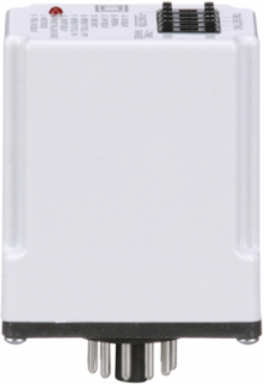

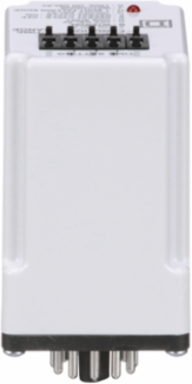

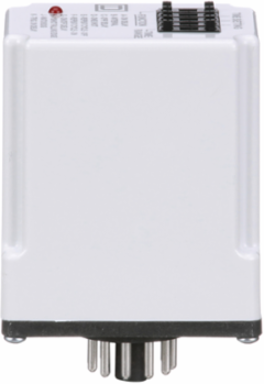

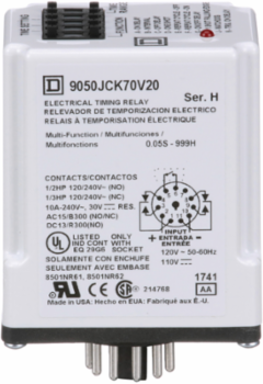

Square D 9050JCK70V20 Multifunction Timing Relay, DPDT, 10A, 0.5 Sec to 999 Hours
Square D 9050JCK70V20 Multifunction Timing Relay, DPDT, 10A, 0.5 Sec to 999 Hours
- MPN: 9050JCK70V20
- UPC: 785901053880
- PPN: SCH-9050JCK70V20
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$269.88/ EA
Description
9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
Specifications
Environment
- Product Certifications
- CE || UL recognized || UL listed
- Height
- 60 mm
- Depth
- 91 mm
Ambient Air Temperature For Operation-18-150 °F
Width44 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406037EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1406037EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Contacts Type And Composition
- 2 NO + 2 NC
- Contacts Material
- silver nickel
- Shape Of Pin
- tubular
- Switch Function
- DPDT
- Product Compatibility
- 8501NR61 || 8501NR62
Mounting Supportsocket
Hold-In Power Consumption In Va3-3 VA
[In] Rated Current10 A
Pin Number11
Maximum Switching Voltage240 V AC
Specifications
- [Uc] Control Circuit Voltage
- 120 V AC
- Range Of Product
- 9050JCK
- Time Delay Type
- one shot falling edge || repeat cycle || trigger on-delay || interval || off-delay || watchdog || one shot || on-delay || on-delay and off-delay
Time Delay Range1...999 h || 0.05...9.99 s || 1...999 s || 0.1...99.9 s || 0.1...99.9 h || 1...999 min
Product Or Component Typetimer
