Square D

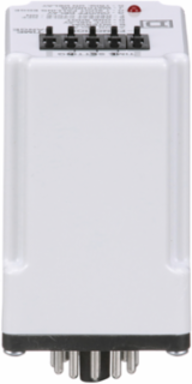

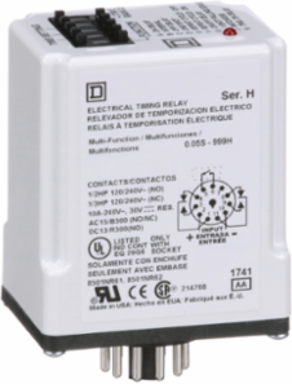

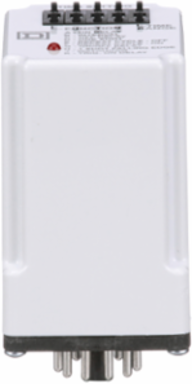

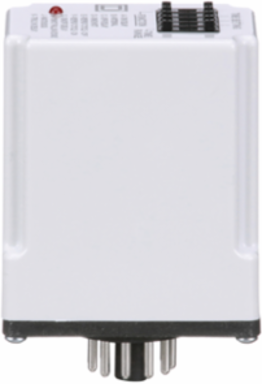

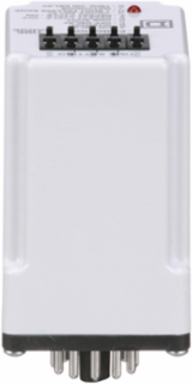

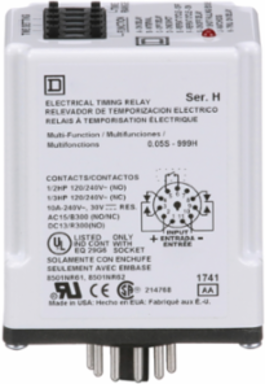

Square D 9050JCK70V14 Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC

Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
  • MPN: 9050JCK70V14
  • UPC: 785901053897
  • PPN: SCH-9050JCK70V14

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$269.88/ EA

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 24 VAC/VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

Environment

Product Certifications
UL recognized || CE || UL listed
Height
60 mm
Depth
91 mm
Ambient Air Temperature For Operation-18-150 °F
Width44 mm

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1406037EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1406037EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Complementary

Contacts Type And Composition
2 NO + 2 NC
Contacts Material
silver nickel
Shape Of Pin
tubular
Switch Function
DPDT
Pin Number
11
Mounting Supportsocket
Hold-In Power Consumption In Va3-3 VA
[In] Rated Current10 A
Product Compatibility8501NR62 || 8501NR61
Maximum Switching Voltage240 V AC

Specifications

[Uc] Control Circuit Voltage
24 V AC
Range Of Product
9050JCK
Time Delay Type
watchdog || on-delay and off-delay || one shot falling edge || one shot || trigger on-delay || off-delay || on-delay || interval || repeat cycle
Time Delay Range0.1...99.9 h || 0.05...9.99 s || 0.1...99.9 min || 1...999 h || 1...999 s || 1...999 min
Product Or Component Typetimer
