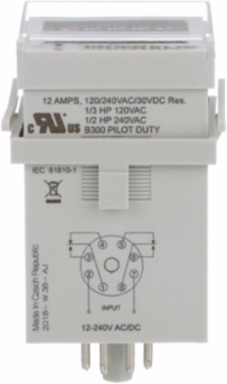

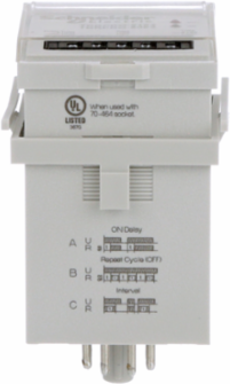

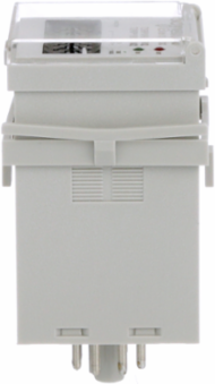

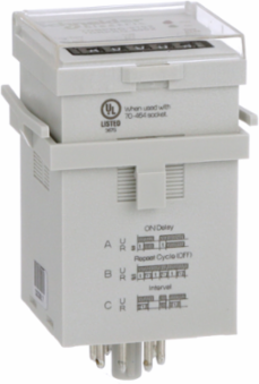

Schneider Electric TDRPRO-5102 Time delay relay, Harmony SE Relays, DPDT, 100ms to 9990hours, 7time scales, 3 functions, socket compatible, 12A, 12...240V AC/DC
- MPN: TDRPRO-5102
- PPN: SCH-TDRPRO-5102
CAD
$291.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays TDRPRO series, , time delay relay offers 10 different timing functions with ultra-wide timing range of 0.1 ms to 9990 hr with thumb-wheel adjustment dial wich helps to reduce mechanical deviation for supreme accuracy. Universal voltage input of 12 to 240 VAC/VDC with contact ratings of 12A 1/3hp at 120VAC and 1/2hp at 240 VAC makes this programmable, multifunction relay ideal in design flexibility. Contact configaration is performed by silver alloy contacts as DPDT. Socket compatible mounting option allows to set relay directly to panel and makes it ideal for tight spaces and allows easy installation. Dust cover retains settings and keeps dust out. 2 LED status indicators shows input indication in green LED and output indication in red LED blinking light as timing status relay or red steady on light as energized relay status.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia
Depth47.8 mm
Complementary Attributes
- Maximum Horse Power Rating
- 1 hp 240 V AC0.5 hp 120 V AC
Maximum Power Consumption In W2 W 12...240 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Time Delay Range
- 100 ms...9990 hr in steps of 0.1 s, 100 ms...9990 hr in steps of 1 second, 100 ms...9990 hr in steps of 0.1 min, 100 ms...9990 hr in steps of 1 min, 100 ms...9990 hr in steps of 0.1 h, 100 ms...9990 hr in steps of 1 h, 100 ms...9990 hr in steps of 10 h
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- silver alloy contacts
- Dielectric Strength
- 2500 V between input and output
- Local Signalling
- 1 LED red, blinking timing in progress1 LED per input green
- Mounting Support
- socket
- Power Consumption In Va
- 2.5 VA 12...240 V
- Product Or Component Type
- time delay relay
- Repeat Accuracy
- +/- 0.1 % of the measuring range+/- 0.1 % of the measuring range
- Returnability
- Yes
- Switch Function
- DPDT
- Voltage Range
- 0.85...1.15 Un
- Width Nominal
- 48 mm
- [Us] Rated Supply Voltage
- 12...240 V AC/DC 50...60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9107008000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Ie] Rated Operational Current12 A at 120 V AC (on resistive load), 12 A at 240 V AC (on resistive load)12 A at 30 V DC (on resistive load)
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Brake Release Time25 ms
Control Typedial front
Electrical Durability100000 cycles
Mechanical Durability10000000 cycles
Operating Time25 ms
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Reset Time150 ms maximum
Sustainable PackagingYes
Time Delay Typemultifunction
Height Nominal71.95 mm
Certificate AgencyUL
Setting-upthumbwheel
Package Weight(Lbs)0.16 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ip Degree Of ProtectionIP40 IEC 60529 enclosure)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- time delay relay
Range Of ProductLegacy
Output Attributes
- Nominal Output Current
- 12 A
Accessories
