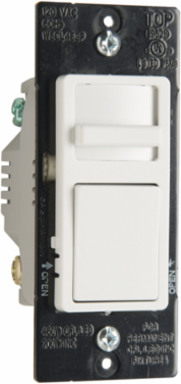

Pass & Seymour WSCL453PTC Wide Slide Dimmer Switch, 450W LED/CFL & 700W Incandescent, Ergonomic Design
- MPN: WSCL453PTC
- UPC: 785007039535
- PPN: P-S-WSCL453PTC
CAD
$48.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wide Slide Dimmer Switch, 450W LED/CFL & 700W Incandescent, Ergonomic Design
Features
- Convenient Operation - Combines ON/OFF Decorator style switch with separate slider for dimming control
- Constant memory returns lights to previous level after a power failure
- Sleek, ergonomic design that matches well with other decorator products
- Higher ratings
- Single pole and 3-way operation
- Screw-pressure-plate back wire terminals to save time, space and money
- Wattage Rating: 450 W (LED & CFL), 700 W (Incandescent)
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.25 in |
|---|---|
| Height | 4.25 in |
| Load Type | CFL |
| Load Type | LED |
| Standard | cULus |
| Load Type | Halogen |
| Switch Type | Slider |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall Box |
| Special Features | Preset |
| Product Series | Decorator |
| Features | Color Change Kit |
| Load Rating | 120V 450W (CFL) |
| Application Sector | Commercial |
| Load Rating | 120V 700W (Halogen) |
| Number of Poles | Single Pole 3-Way |
| Load Rating | 120V 700W (Incandescent) |
| Color | Ivory,Light Almond,White |
| Material | Steel,Thermoplastic |
| Warranty Type | Limited Lifetime Warranty |
| Preset | Yes |
|---|---|
| Width | 1.75 in |
| Country of Origin | China |
| Standard | RoHS |
| Voltage | 120 VAC |
| Switch Type | Rocker |
| Indoor/Outdoor | Indoor |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Wire Size | #14 - #10 AWG |
| Requires Neutral Wire | No |
| Connection | Screw Terminals |
| Load Rating | 120V 450W (LED) |
| Application Sector | Residential |
| Features | Low-End Trim (Dim Range) |
| Dimming Compatibility | Forward Phase |
| Wire Connection Type | Screw Terminals |
| Finish | Matte |
| Product Line | Pass & Seymour |
| Environmental Conditions | Humidity: Less than 95% non condensing |
