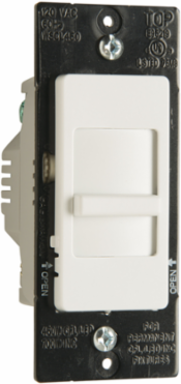

Pass & Seymour WSCL450TC Wide Slide Paddle Dimmer Switch, 450W LED/CFL & 700W Incandescent, Tri-Color

MPN: WSCL450TC
UPC: 785007040418
PPN: P-S-WSCL450TC

$45.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Wide Slide Paddle Dimmer Switch, 450W LED/CFL & 700W Incandescent, Tri-Color

Features

Convenient Operation - Combines ON/OFF Decorator-style switch with separate slider for dimming control
Constant memory returns lights to previous level after a power failure
Sleek, ergonomic design that matches well with other decorator products
Higher ratings
Single-pole operation
Screw-pressure-plate back wire terminals save time, space and money
Rating: 450W LED & CFL: 700W Incandescent: 120VAC 60Hz

Documentation & Downloads

Specifications

Key Specifications

Depth	1.25 in
Height	4.25 in
Load Type	CFL
Load Type	LED
Standard	cULus
Load Type	Halogen
Indoor/Outdoor	Indoor
Load Type	Incandescent
Number of Switches	1.0
Product Series	Decorator
Features	Color Change Kit
Load Rating	120V 450W (LED)
Application Sector	Residential
Color	Ivory,Light Almond,White
Material	Steel,Thermoplastic
Dimming Compatibility	Forward Phase
Wire Connection Type	Screw Terminals
Maximum Humidity	95% (relative humidity, non-condensing)

Preset	No
Width	1.75 in
Country of Origin	China
Standard	RoHS
Voltage	120 VAC
Switch Type	Slider
Frequency Rating	60 Hz
Mounting Type	Wall Box
Wire Size	#14 - #10 AWG
Requires Neutral Wire	No
Load Rating	120V 450W (CFL)
Number of Poles	Single Pole
Load Rating	120V 700W (Halogen)
Finish	Matte
Product Line	Pass & Seymour
Load Rating	120V 700W (Incandescent)
Warranty Type	Limited Lifetime Warranty
Environmental Conditions	Humidity: Less than 95% non condensing
