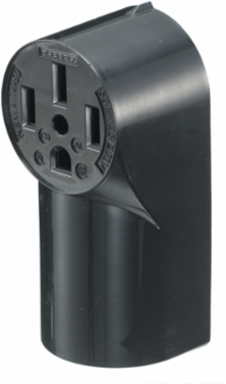

Bryant RR450 Residential Grade 50A 125/250V Single Receptacle, 3-Pole 4-Wire, Surface Mount
- MPN: RR450
- UPC: 883778100833
- PPN: HBL-RR450
- UNSPSC: 39121406
CAD
$62.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
tradeSELECT® Straight Blade Residential Grade, Single, 50A 125/250V, 3-Pole 4-Wire Grounding, 14-50R, Surface Mount
Features
- Flush Mount for 1- or 2-Gang Box
- Residential Range and Dryer Receptacle
- Surface Mount Receptacle
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.500 in
- Amperage Rating
- 50 A
- Color
- Black
- NEMA Rating
- 14-50R
- Number of Wires
- 4-Wire
- Special Features
- Surface Mount Receptacle
- Type
- Single Receptacle
- Wattage
- 12500
- Voltage Rating Description
- 125/250 V
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- 14-50R
- Number Of Wires
- 4-Wire
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Screw Mounting
- Series
- Heavy Duty
- BOX SIZE
- 5.900x11.400x5.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778100833
- Case - Total Units
- 40 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70883778100832
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating50 A
Industry Standard(s)UL Listed
ApplicationResidential Range and Dryer Devices
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
PhaseSingle Phase
StandardUL Listed
Voltage Rating125/250 V
Wire Size#6 AWG
General Literature Asset 1 Display TextResidential Catalog
Display SizeStandard Sized Product
Number Of Poles3-Pole
Description - InvoiceRECPT, SB, 50A 125/250V, 3P4W, SURF, BK
Harmonization Code8536694020
MSDS FlagNo
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight9.993 lb.
Lowest Level UOMEach
Pallet Height44.800 in
Pallet Weight1702.750 lb.
Certifications
- EU RoHS Indicator
- Yes
