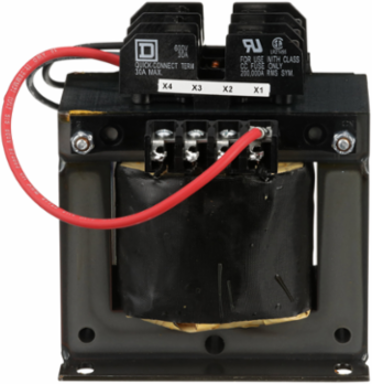

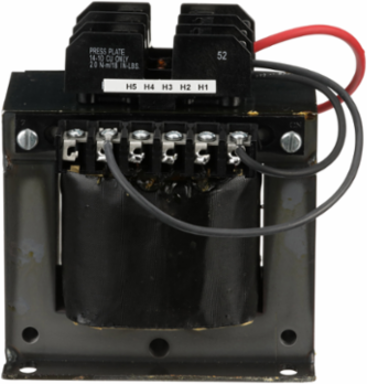

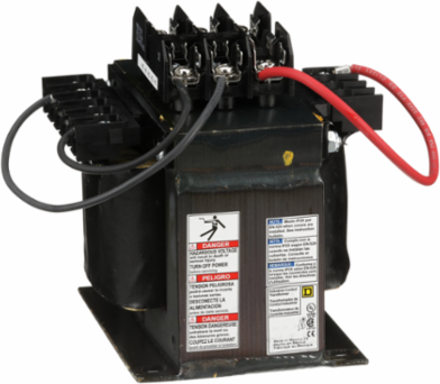

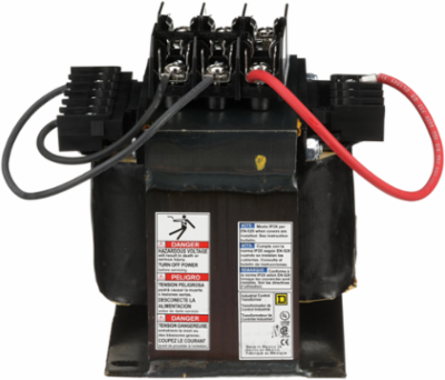

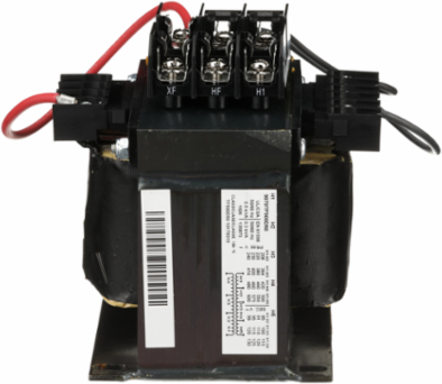

Square D 9070TF500D50 Transformer, Industrial Control, 500VA, 1 Phase, 240/600V Primary, Copper Winding
- MPN: 9070TF500D50
- UPC: 785901563624
- PPN: SCH-9070TF500D50
CAD
$535.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 500VA and is single phase. It has a 208/360/416/520 V primary voltage and 85/104/115 V secondary voltage with a temperature rise of 115 °C. Dimensions for this product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC1. This transformer complies to UL, CE & CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth5.61 in
Complementary Attributes
- Rated Power In Va
- 500 VA UL, 500 VA CSA, 500 VA NOM300 VA CE
Important Information Attributes
- Certificate Agency
- UL listed file E61239, CSA file LR37055 guide 184-N-90
- Local Publishable Date
- 2026-07-01
- Stocking Flag
- Y
- Device Type
- Transformer - dry
- Traceability
- No
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Electrical Connection
- screw clamp terminals
- Fuse Type
- 0.41 x 1.50 in CC top
- Material
- copper: winding
- Primary Voltage
- 240/416/480/600 V 99/120/130 V230/400/460/575 V 95/115/125 V220/380/440/550 V 90/110/120 V208/360/416/520 V 85/100/110 V
- Product Or Component Type
- Industrial Control Transformer
- Returnability
- Yes
- Temperature Rise
- 115 °C
- Width Nominal
- 5.25 in
- Package Weight(Lbs)
- 7.802 kg
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Insulation Temperature180 °C
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductTF
Sustainable PackagingNo
Height Nominal5.81 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504314065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- FSC23
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- TF
Product Or Component TypeIndustrial Control Transformer
ETIM
- ETIM 8
- EC002486
ETIM 9EC002486
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
