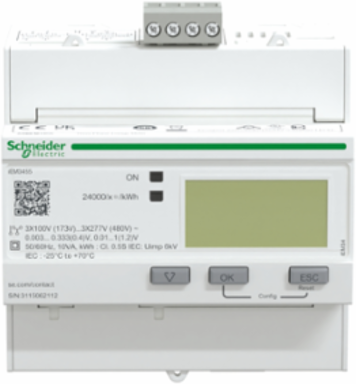

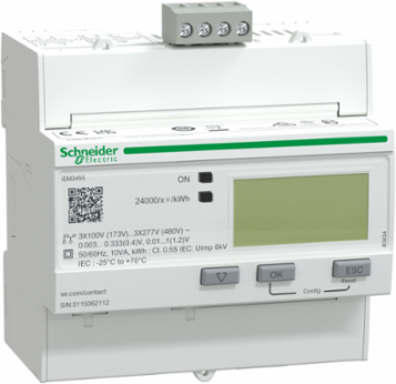

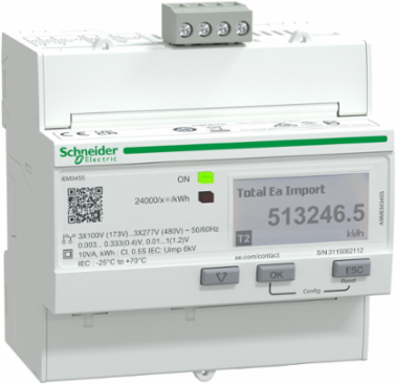

Schneider Electric A9MEM3455 Acti9 iEM3455 Energy Meter, 3-Phase, Modbus, 1 DI, 1 DO, Class 0.5S
- MPN: A9MEM3455
- PPN: SCH-A9MEM3455
CAD
$545.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

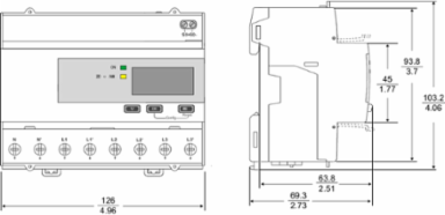

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm). Compatible with power management software to take advantage of the IoT digital power installation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States, ZZ
Depth69 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Wire Stripping Length
- input/output circuit: 6 mmvoltage circuit: 8 mm, current circuit: 8 mmcommunication: 7 mm
ColorWhite
Complementary Attributes
- Maximum Value Measured
- 99999999.9 kWh, 99999999 MWh
Rated Voltage100-277 V +/- 20 %, 173-480 V +/- 20 %
Important Information Attributes
- Device Application
- sub billing, multi-tariff, partial meter
- Market Segment
- buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboardbuildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboardbuildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocationbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
- Number Of Poles
- + N, 1P + N, 3P
- Type Of Measurement
- active and reactive energy, active and reactive power, current, voltage
- Connections - Terminals
- current circuit screw terminals 6-6 mm²voltage circuit screw terminals 2.5-2.5 mm²input/output circuit screw terminals 1.5-1.5 mm², communication screw terminals 2.5-2.5 mm²
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7215004936156895, 0.7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 13.05953557363541
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN
- Local Publishable Date
- 2025-12-17
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- iEM3455
- Energy Efficiency Optimized
- False
- Measurement Current
- 1-32767000 mA
- Mounting Mode
- clip-on
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- energy meter
- Returnability
- Yes
- Software Version
- v6.2.4
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Acti9 iEM34xx / iEM35xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 119.355
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 87 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Local SignallingGreen indicator light power ONYellow flashing LED accuracy checkingalarm overload, Yellow indicator light communications are active on the Modbus port (Modbus)
Network Frequency60 Hz, 50 Hz
Tightening Torqueinput/output circuit: 0.5-0.5 N.m Philips screwdriver, voltage circuit: 0.5-0.5 N.m Philips screwdriver, current circuit: 0.8-0.8 N.m pozidriv screwdriver, communication: 0.5-0.5 N.m Philips screwdriver
Certificate AgencyCE IEC 61010-1 safety)CE EN 61557-12 power monitor)CE EN/IEC 61326-1 EMC)UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC)cULus UL 61010-1 safety), cULus EN 61010-1 safety), KZ, RCM
Carbon Footprint Of The Distribution Phase [A4]0.7098723747809604, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.008884272874739602
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]58 kg CO2 eq., 58.00511827246438
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1507016_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0801
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeiEM3455
Display TypeLCD display
Information Displayedtariff 4)
Metering Typeactive, reactive, apparent energy (signed, four quadrant)
Mounting SupportDIN rail
Product NameActi9 iEM3000
RangeActi9
Sampling Rate32 samples/cycle
Sustainable PackagingNo
Total Lifecycle Carbon Footprint73 kg CO2 eq.
Pep CodeENVPEP1507016EN
Pep Verification Date2025-03-27
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %5
Width Nominal90 mm
Package Weight(Lbs)326.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C - IEC, -25-70 °C - IEC-25-70 °C - IEC, -25-70 °C - IEC
- Operating Altitude
- < 9842.52 ft (3000 m), < 9842.52 ft (3000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- 9 Mm Pitches
- 10
- Environmental Disclosure
- ENVPEP1507016EN
- Ip Degree Of Protection
- IP40 front panel: conforming to IEC 60529IP20 body: conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % 36-36 °C
- Pep Verification Date
- 2025-03-27
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint72.50491098737119
Circularity ProfileENVEOLI1507016_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1507016EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 digital (static)
Output Voltage5...40 V DC@50 mA
Input Attributes
- Analogue Input Type
- low voltage current transformer 0.333 V or 1 V
Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC
