Schneider Electric A9MEM3565 Acti9 Energy Meter, 3-Phase, 100-277V, 1 DI, 1 DO, BACnet
Schneider Electric A9MEM3565 Acti9 Energy Meter, 3-Phase, 100-277V, 1 DI, 1 DO, BACnet
- MPN: A9MEM3565
- PPN: SCH-A9MEM3565
- UNSPSC: 39121102
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$656.03/ EA
Description

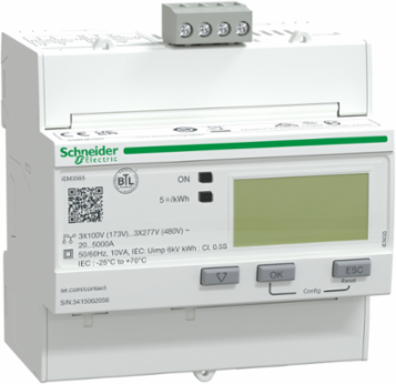

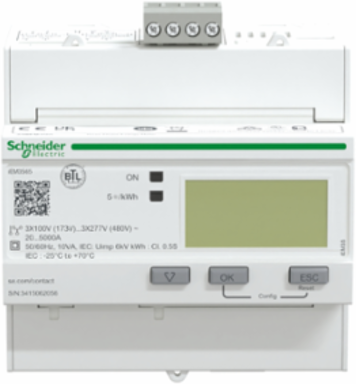

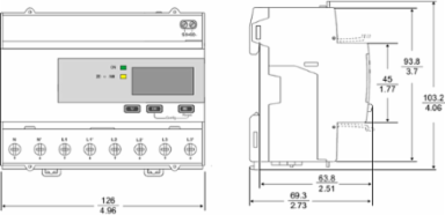

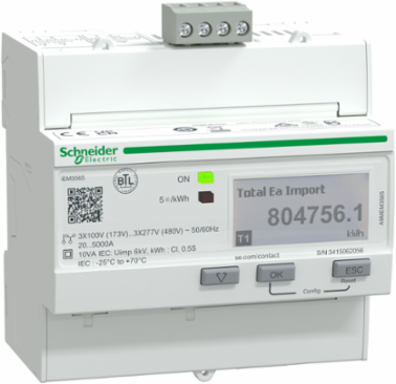

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a Rogowski coil to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm).
Features
- Feature-rich power and energy meters
- Simple energy monitoring compatible with Building management systems
- Compact, DIN rail mounted form factor
- Bacnet communication port and digital output for remote monitoring
- Identify energy savings opportunities with precision accuracy of Class 1.0
- Collect and analyze energy consumption data
- Rogowski CT in three phase network
- Three phase DIN rail mount power and energy meter
- Large LCD display for easy reading
Specifications
Communications & Management Attributes
- Communication Port Protocol
- BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Wire Stripping Length
- input/output circuit: 6 mm, voltage circuit: 8 mm, current circuit: 8 mm, communication: 7 mm
ColorWhite
Conformance Attributes
- Product Certifications
- CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), cULus UL 61010-1 safety), cULus EN 61010-1 safety), KZ, RCM
StandardsBS IEC 61326-1, EN 61326-1, BS EN 61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010, BS IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, ANSI C12.20
Complementary Attributes
- Rated Voltage
- 100-277 V +/- 20 %, 173-480 V +/- 20 %
Maximum Value Measured99999999.9 kWh, 99999999 MWh
Important Information Attributes
- Device Application
- sub billing, partial meter, multi-tariff
- Market Segment
- buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocation, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
- Poles Description
- 1P + N, 3P + N, 3P
- Type Of Measurement
- active and reactive energy, active and reactive power, current, voltage
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.7 kg CO2 eq., 0.6915271793408537
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 13 kg CO2 eq., 12.517002938528893
- Connections Terminals
- current circuit screw terminals 6-6 mm², voltage circuit screw terminals 2.5-2.5 mm², input/output circuit screw terminals 1.5-1.5 mm², communication screw terminals 2.5-2.5 mm²
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- No
- Field Service Division
- DPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Device Short Name
- iEM3565
- Energy Efficiency Optimized
- False
- Measurement Current
- 50-5000 A
- Mounting Support
- DIN rail
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- Acti9
- Sampling Rate
- 32 samples/cycle
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- Y
- Pep Code
- ENVPEP1507016EN
- Pep Verification Date
- 2025-03-27
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Global Commercial Status
- Commercialised
Local SignallingGreen indicator light power ON, Yellow flashing LED accuracy checking, alarm overload
Network Frequency50 Hz, 60 Hz
Tightening Torqueinput/output circuit: 0.5-0.5 N.m Philips screwdriver, voltage circuit: 0.5-0.5 N.m Philips screwdriver, current circuit: 0.8-0.8 N.m pozidriv screwdriver, communication: 0.5-0.5 N.m Philips screwdriver
Carbon Footprint Of The Distribution Phase A40.680382127757419, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.008515193289438847, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B654 kg CO2 eq., 54.120371819354375
Connections Terminals3current circuit screw terminals 6-6 mm², voltage circuit screw terminals 2.5-2.5 mm², input/output circuit screw terminals 1.5-1.5 mm², communication screw terminals 2.5-2.5 mm²
Local Publishable Date2025-12-17
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1507016_V2
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeiEM3565
Display TypeLCD display
Information Displayedtariff 4)
Mounting Modeclip-on
Package Weight Lbs323 g
Product Or Component Typeenergy meter
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint68 kg CO2 eq.
Medium DesciEM3565 energy meter - BACnet - 1 DI - 1 DO - multi-tariff - Rogowski coil
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionActi9 iEM34xx / iEM35xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; China, CN
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Europe, EU-27
Metering Typeactive, reactive, apparent energy (signed, four quadrant)
Product NameActi9 iEM3000
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 68.01779925827098
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP1507016EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1507016EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-70 °C - IEC, -25-70 °C - IEC, -25-70 °C - IEC, -25-70 °C - IEC
IP Degree Of ProtectionIP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 MM Pitches10
Circularity ProfileENVEOLI1507016_V2
Operating Altitude< 9842.52 ft (3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % 36-36 °C
Pep Verification Date2025-03-27
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- energy meter
Output Attributes
- Number Of Outputs
- 1 digital (static)
Output Voltage5...40 V DC@50 mA
Input Attributes
- Analogue Input Type
- Rogowski coil 50...5000 A
Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC
Specifications
- Depth
- 69 mm
