Schneider Electric XB4BA711237 Harmony XB4 Triple-Headed Push Button 22mm, IP69K, 1NO + 1NC
Schneider Electric XB4BA711237 Harmony XB4 Triple-Headed Push Button 22mm, IP69K, 1NO + 1NC
- MPN: XB4BA711237
- PPN: SCH-XB4BA711237
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$101.83/ EA
Description

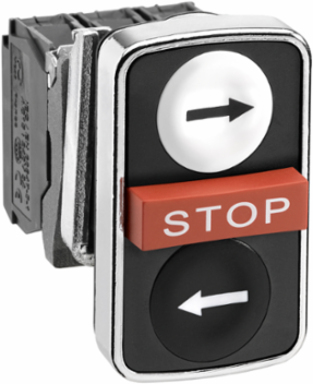

This Harmony XB4 triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates witha spring return / impulse mechanism. It has a metal bezel. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- UL listed || CSA || BV || DNV || LROS (Lloyds register of shipping) || GL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP69K IEC 60529 || IP69 IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsIEC 60947-1 || IEC 60947-5-5 || IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass I IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Complementary
- Contacts Usage
- standard contacts
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Net Weight
- 0.128 kg
- Device Presentation
- complete product
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Mechanical Durability
- 1000000 cycles
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
Operating Force3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Operator Profilered projecting, STOP white) || white flush, right arrow black) || black flush, left arrow white)
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- spring return
- Product Or Component Type
- triple-headed push-button
- Fixing Collar Material
- zamak
- Head Type
- standard
- Contacts Type And Composition
- 1 NO + 1 NC
- Contact Operation
- slow-break
Mounting Diameter22 mm
Operators Descriptionwhite ''right arrow'' - black ''left arrow'' - red ''STOP''
Shape Of Signaling Unit Headrectangular
Operator Profile2 flush - 1 central projecting STOP push-buttons
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Bezel Materialchromium plated metal
Device Short NameXB4
