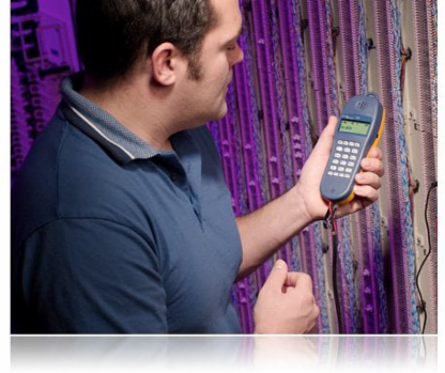

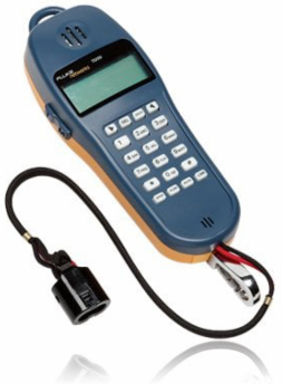

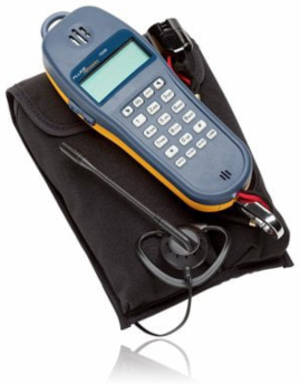

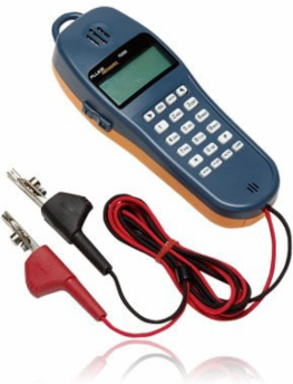

Fluke 25501109 TS® 25D Test Sets
- MPN: 25501109
- UPC: 754082038801
- PPN: FLU-25501109
CAD
$643.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This feature-rich test set is a necessity for a variety of installs. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tone without downing DSL. A built-in analog tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The talk battery function provides voltage to carry voice conversation on non-powered pairs. All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sense menus easy-to-read and use. TS® Professional Series – Products Comparison
Documentation & Downloads
Specifications
AC Impedance
| Off-Hook | 600 Ω nominal; 300 Hz to 3400 Hz |
|---|
| On-Hook | >120 kΩ; 300 Hz to 3400 Hz |
|---|
Memory Dialing
| Memory Capacity | 10 speed dial memories plus one last number redial memory |
|---|---|
| Pause Duration | User programmable Default: 4 seconds |
| Automatic Speaker Shut Off Duration | User programmable TS25D default: 5 minutes TS25D CO default: 2 minutes |
| Digit Capacity | 23 digits per memory |
|---|---|
| Hook Flash Duration | User programmable Default: 600 ms |
| Battery | 9 V alkaline or lithium battery |
Rotary Dial Output
| Pulsing Rate | 10 pps ±1 pps |
|---|---|
| Interdigit Interval | >300 ms |
| Break/Make Ratio | 60/40 |
|---|---|
| Resistance During Break | >100 kΩ |
Electrical
| Return Loss | >14 dB (ref 600 Ω) |
|---|
DTMF Output
| Tone Frequency Error | ±1.5 % maximum |
|---|---|
| High versus Low Tone difference | 2 dB ± 2 dB |
| Tone Level | –1 dBm combined (typical) |
|---|
DC Resistance
| Off-Hook | 150 Ω nominal |
|---|
| On-Hook | >1 MΩ |
|---|
Physical
| Measurement | 7.8 in x 2.7 in x 1.6 in (20 cm x 6.8 cm x 4 cm) |
|---|
| Weight | 10 ounces (284 g) |
|---|
Environmental
| Temperature Range Operating | 32°F to 122 °F (0 °C to 50 °C) |
|---|---|
| Altitude | Up to 10,000 ft (3,000 m) |
| Storage | -40 °F to 150 °F (-40 °C to 65 °C) |
|---|---|
| Relative Humidity | 5 % to 95 % |
