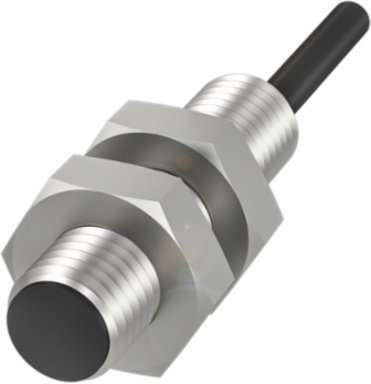

Balluff BMF 08M-PS-C-2-KPU-02 Tubular Magnetic Field Sensor Ø 8 x 30.5 mm PNP NO, IP67
Balluff BMF 08M-PS-C-2-KPU-02 Tubular Magnetic Field Sensor Ø 8 x 30.5 mm PNP NO, IP67
- MPN: BMF 08M-PS-C-2-KPU-02
- PPN: BAL-BMF000P
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$166.82/ EA
Description
The Balluff Tubular Magnetic Field Sensor is engineered for high-performance applications, featuring a compact design with a diameter of just 8 mm and a length of 30.5 mm. This PNP normally open sensor operates effectively within a wide ambient temperature range of -25 to 85 °C, making it suitable for various industrial environments. With a robust brass housing that is nickel-plated and an IP67 rating, it ensures reliable performance even in challenging conditions. The sensor supports a switching frequency of up to 10,000 Hz and offers flexible mounting options with switching distances greater than 20 mm, making it an ideal choice for precise magnetic field detection in automation and control systems.
Specifications
Specifications
- Country of Origin
- Hungary
- Principle of operation
- Magnetic field sensor
- Application
- Flexible mounting; Switching distances> 20 mm possible
- Housing material
- Brass, nickel-plated
- Switching frequency
- 10000 Hz
- Ambient temperature
- -25...85 °C
- Approval/Conformity
- cULus; CE; UKCA; WEEE
DimensionØ 8 x 30.5 mm
CablePUR, 2 m
Fastening detailClamps
Switching outputPNP Normally open (NO)
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
