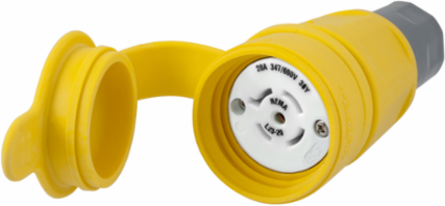

Hubbell Wiring Device-Kellems HBL27W83 Watertight Twist-Lock Connector, 20A, 3-Phase Y 347/600V, 4-Pole, Yellow
- MPN: HBL27W83
- UPC: 783585131863
- PPN: HBL-HBL27W83
- UNSPSC: 39121421
CAD
$174.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Connector, 20A, 3 Phase WYE 347/600V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L23-20R, Yellow
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.51 in x 2.51 in x 5.69 in
- Industry Standard(s)
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
- Color
- Yellow
- Number of Poles
- 4-Pole
- Standard
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Voltage Rating
- 3-Phase Y 347/600 VAC
- Width
- 2.51 in
- General Literature Asset 1 Display Text
- Watertight Wiring Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Number Of Poles
- 4-Pole
- Wire Size
- Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
- Description - Invoice
- CONN, W/TIGHT,3P 20A 347/600V,L23-20R,YL
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Cord Diameter
- 0.325-0.875 in
- BOX SIZE
- 9.400x16.900x9.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585131863
- Case Weight
- 8.650 lb.
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating20 A
Height5.69 in
Length2.51 in
Amperage Rating20 A
NEMA RatingL23-20R
Size2.51 in x 2.51 in x 5.69 in
TypeConnector Body
Voltage Rating Description3-Phase Y 347/600 VAC
Engineering Drawing 1 Display TextHBL27W83 AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
Nema RatingL23-20R
Number Of Wires5-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A116
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.650 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet Height42.600 in
Pallet Weight386.000 lb.
NAICS Code335931A102
Certifications
