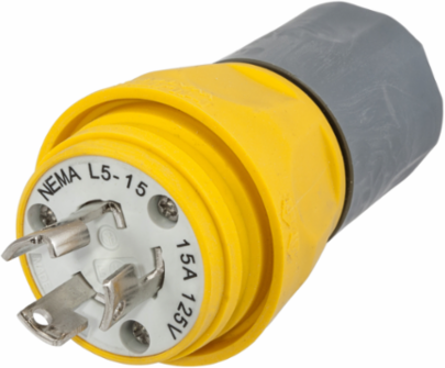

Hubbell Wiring Device-Kellems HBL24W47A Watertight Twist-Lock Plug, NEMA L5-15P, 15A, 125V, 2-Pole, Yellow
- MPN: HBL24W47A
- UPC: 783585131245
- PPN: HBL-HBL24W47A
- UNSPSC: 39121402
CAD
$43.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Plug, 15A, 125V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-15P, Yellow
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- Dielectric Voltage
- 2500 V AC
- Cord Diameter
- 0.300-0.625 in
- Size
- 1.85 in x 1.85 in x 3.21 in
- Blade Holder Material
- White Nylon
- Blades Material
- Nickel Plated Brass
- Bushing & Cone Seal Material
- Black Elastomer
- Strain Relief Nut Material
- PBT
- UV Resistance
- UV stabilized
- Standards Compliance
- UL498, CSA C22.2 No. 42
- Color
- Yellow
Voltage125 V
Number of Wires3-Wire
Temperature Range-40 C to +60 C continuous
Dimensions1.85 in x 1.85 in x 3.21 in
MaterialThermoplastic Elastomer
Terminal Retainer MaterialClear Polycarbonate
Core MaterialWhite Nylon
Gotcha Ring MaterialNylon
Terminal Screws MaterialNickel Plated Brass
ListingsIP69K, UL Listed, CSA Certified, NEMA WD-1, WD-6, ANSI
NEMA RatingL5-15P
Country of OriginUS
